STEP 2 : Connect enclosures with bus bars

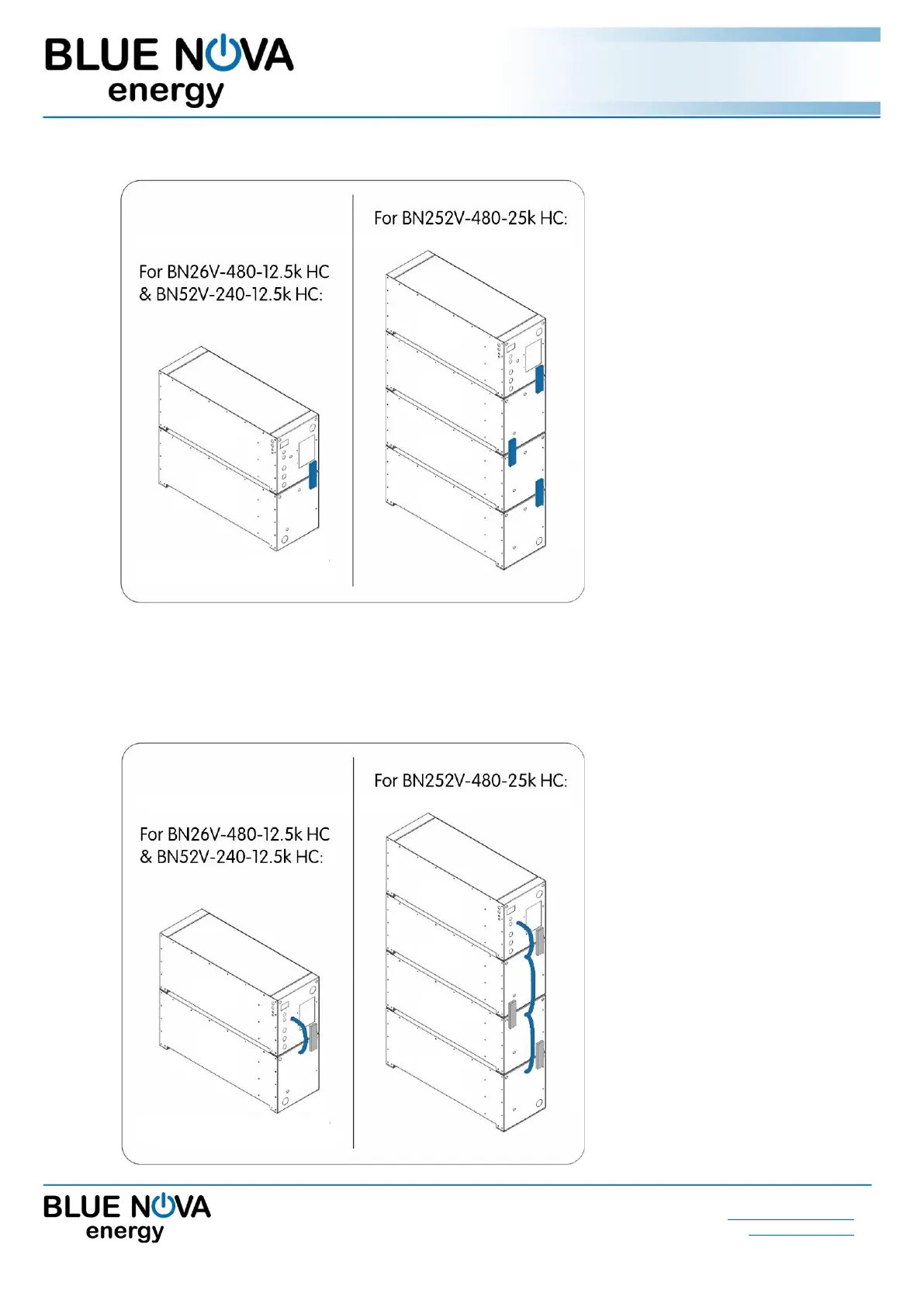

Connect the enclosures in serie: B1(-) to B2(+) ; B2(-) to B3(+) ; B3(-) to B4(+) etc. as illustrated.
STEP 3 : Interconnect BMS
