Blueridge BM48M22C - Multiple Outdoor Unit Clearance Requirements

Revised 5/14/2020
Outdoor Unit
Installation
 Page 9 

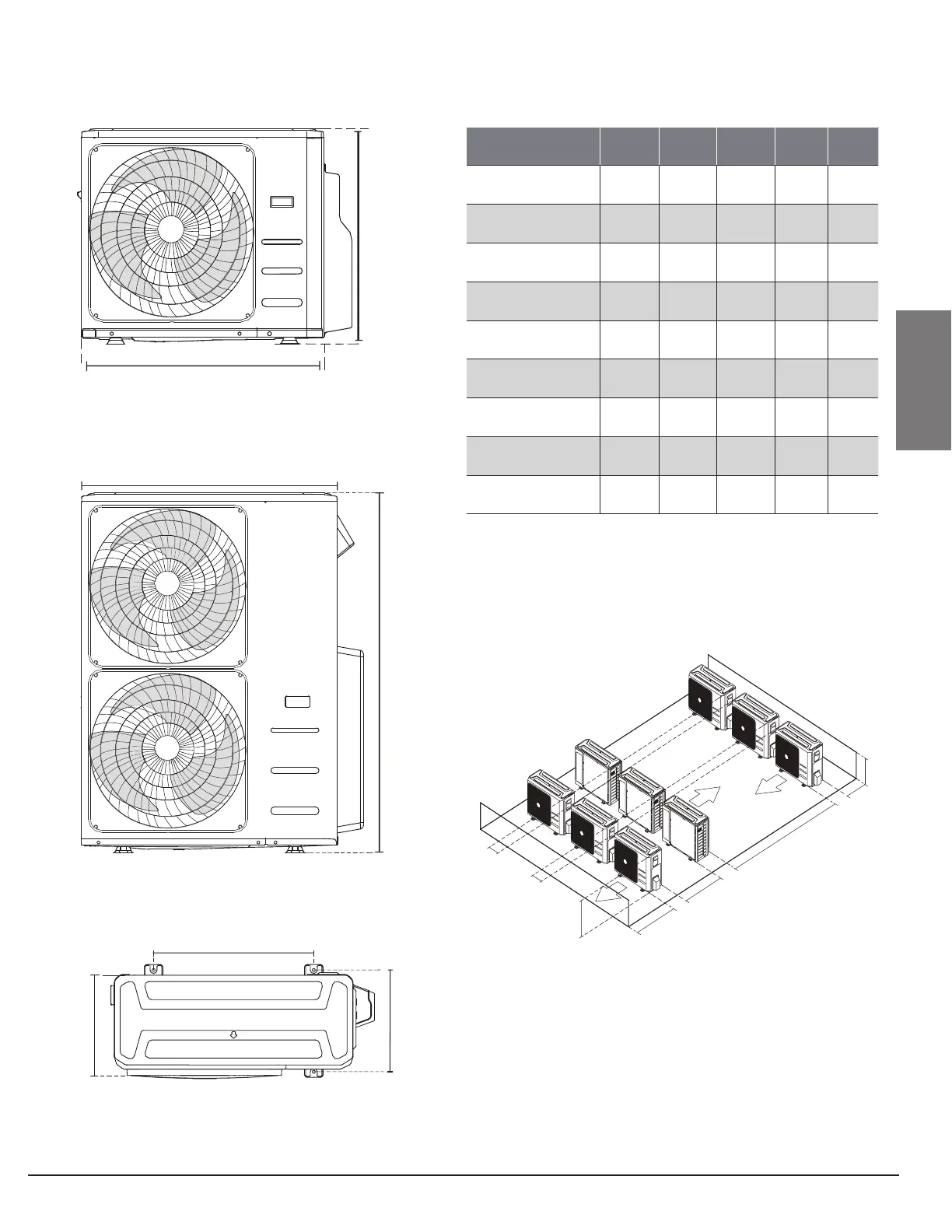

Outdoor Units Table 6.1:
BM18M23C, BM27M23C, BM36M23C,
BMHH18M22C, BMHH27M22C
BMHH36M22C, BM48M22C, BMHH48M22C
Multiple Outdoor Unit
installation clearance requirements
Top View All Condensers
(A, B = mount point dimensions)
W
H
W
H
A
B
D
10 feet or more
2 feet or more
5 feet
or more
10 inches or more
Model W D H A B
BM18M23C 33.27" 14.29" 27.64" 21.3" 13.8"
BM27M23C 37.2" 16.5" 31.9" 26.5" 15.9"
BM36M23C 37.2" 16.5" 31.9" 26.5" 15.9"
BM48M22C 37.5" 16.3" 52.5" 25" 15.9"
BMHH18M22C 37.2" 16.5" 31.9" 26.5" 15.9"
BMHH27M22C 37.2" 16.5" 31.9" 26.5" 15.9"
BMHH36M22C 37.5" 16.3" 52.5" 25" 15.9"
BMHH48M22C 37.5" 16.3" 52.5" 25" 15.9"
