Bluetti B300 - AC Charging; Car Charging; Dual Recharge

07

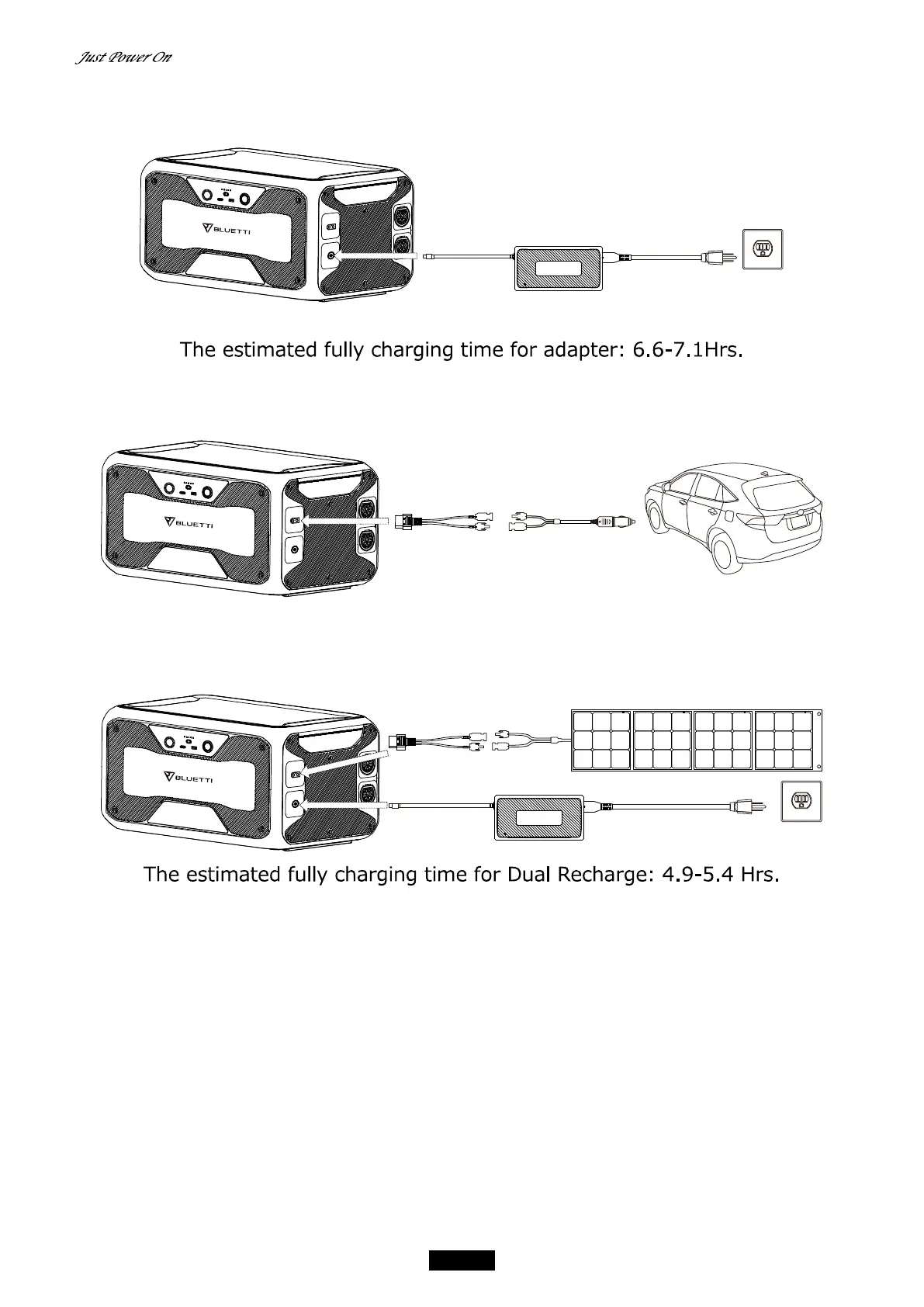

8.2 AC Charging
(T500 500W Adapter)
(Wall outlet)
8.3 Car Charging
(Car Charging Cable)
Cigarette Lighter Port - MC4
(Car)
(PV Input Cable)
8.4 Dual Recharge
(SP200 Solar Panel)
(Wall outlet)
(T500 500W Adapter)
(PV Input Cable)
9. AC300 + B300 EXTRA BATTERY
CONNECTION
AC300 can extend the capacity by 1-4 B300 battery pack to 3072-12288Wh.
Supports up to 4 battery packs in parallel.
AC300+B300 system will be activated when AC300 has been charged.
