How to connect the EP500 Pro to the US utility power
9

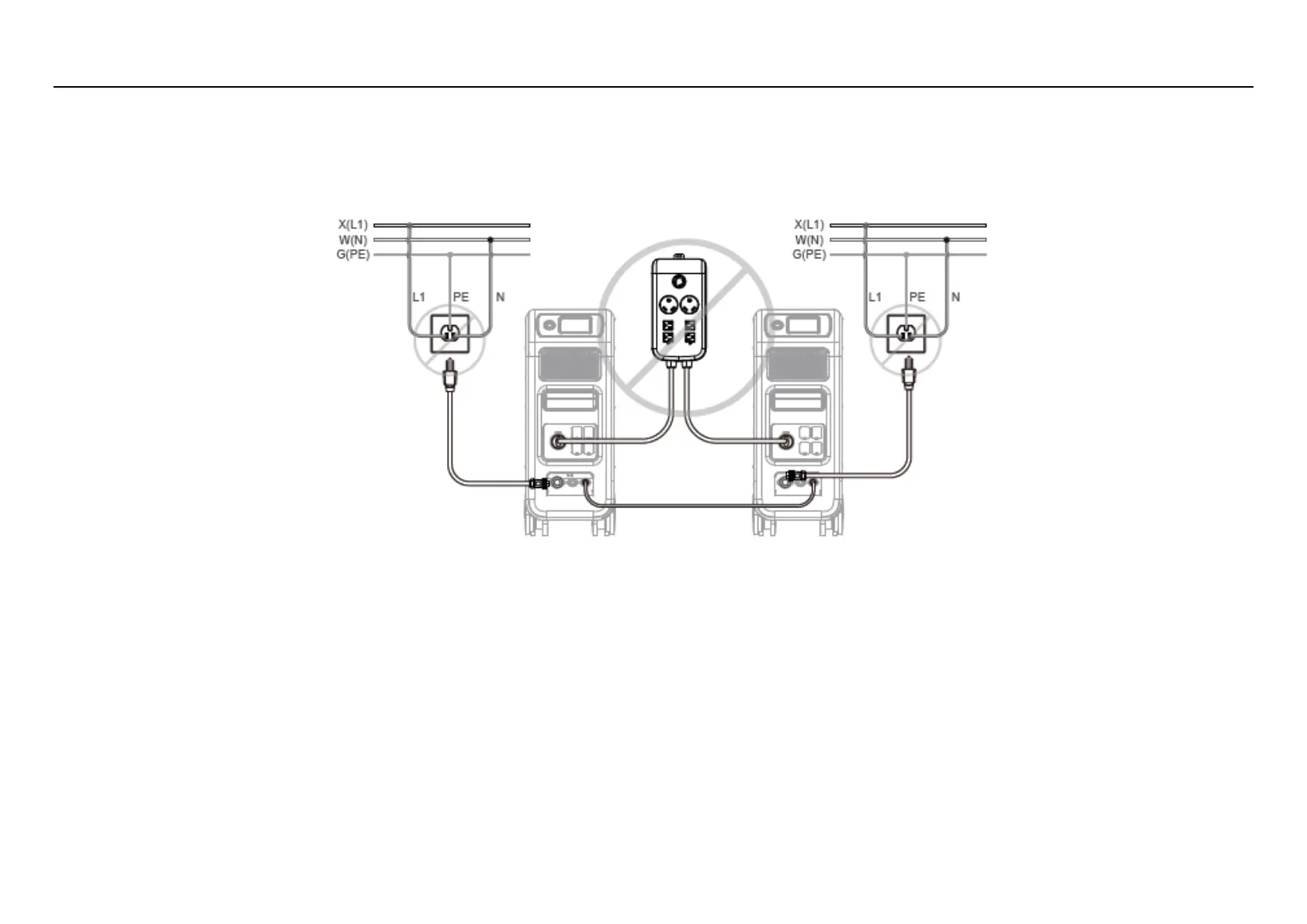

WRONG CONNECTION
It`s forbidden to connect EP500Pro into Split Phase System when AC charging is ON, please use AC Input Cable(Optional Purchase) to charge both of
your power stations in Split Phase System. Wrong Connection will damage the battery inside the power station and your warranty will be invalid.
Thirdly, connect the EP500 Pro to the transfer switch
NOTE:
Before you begin installing your Reliance Controls transfer switch system, you need to create a plan for the appliances you choose to run during a power outage. In setting up a transfer switch to
get the most power from your two power stations in split phase power system, it is desirable to “balance the load” between the two phases of your transfer switch. Devices which will consume
the most of the two power stations’ wattage should be divided between the two.
