BluClear manual

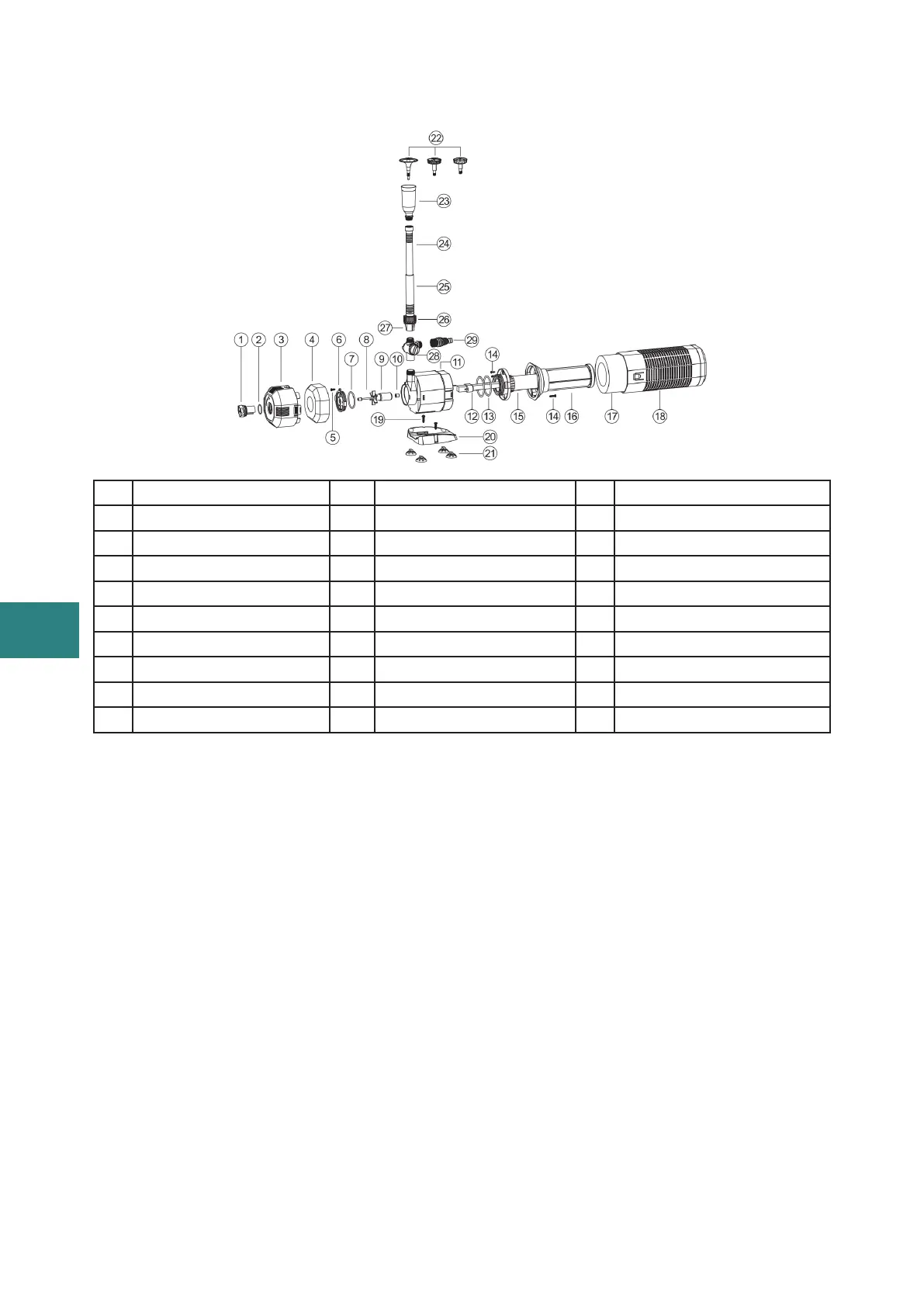

1.C BGF-2009
1 Control valve 11 Motor 21 Suction cups
2 O-ring 1 12 UV-lamp 22 Fountain head
3 Front filter basket 13 O-ring 3 23 Fountain set base
4 Sponge 1 14 Screw 2 24 Extension pipe
5 Screw 1 15 Quartz glass tube 25 Connection pipe
6 Screw cover 16 Protecitive tube 26 Nut
7 O-ring 2 17 Sponge 2 27 Flange
8 Shaft 18 Filter basket 28 Tee adjuster
9 Rotor subassembly 19 Screw 3 29 Outlet
10 Bearing 20 Base
