BLUM MINIPRESS PRO

19 BA-102/2EN M54.XXXX

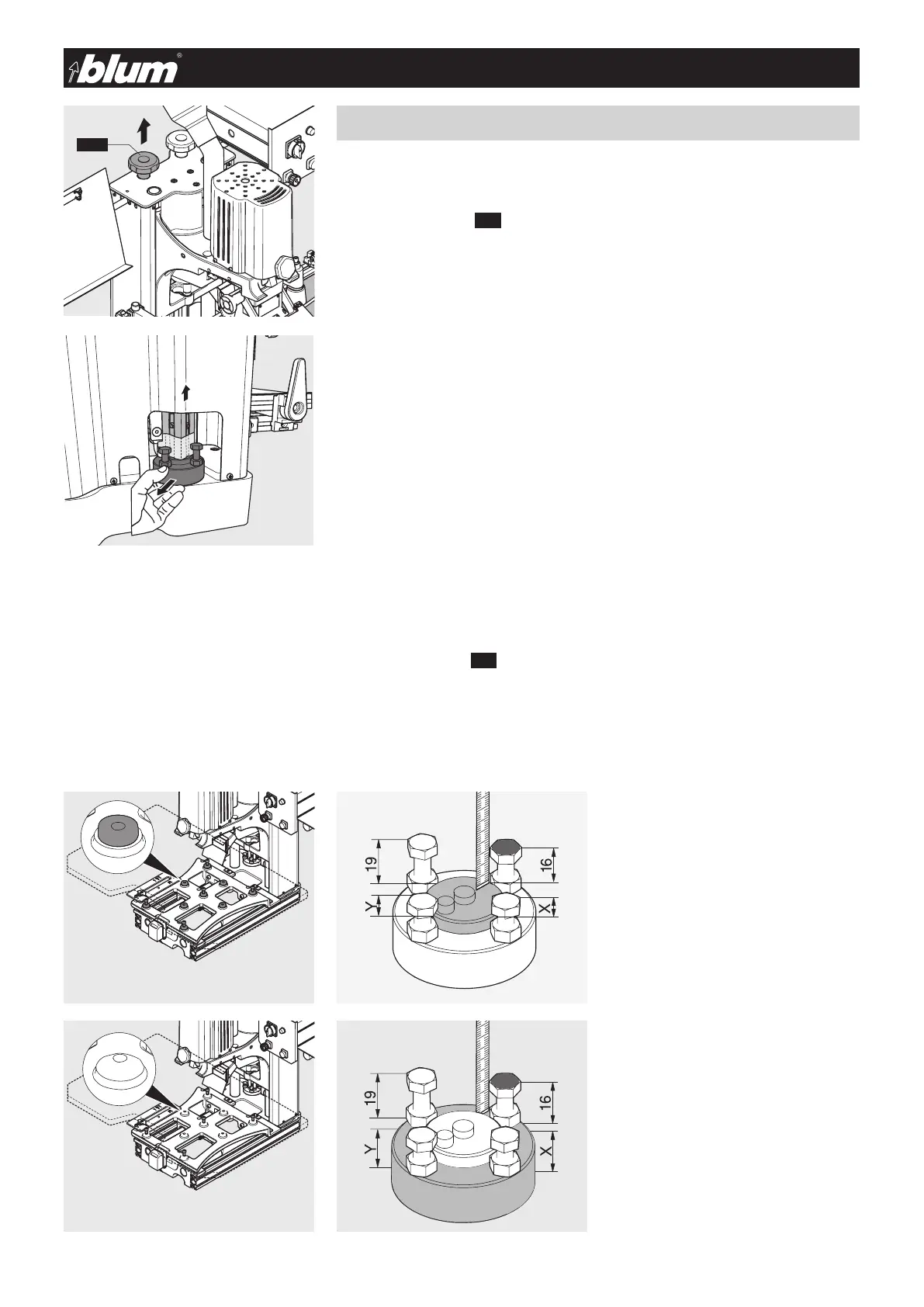

4.1 - Pre-setting revolver for drilling depth
4 - Drilling depth setup explanation
The drilling depths for panel thicknesses 16 and 19 mm are already pre-set.
2 additional dimensions can also be pre-set.
• Liftrevolvinghandle(3.4)
Two screws are preset to 16 and 19 mm.
The other available screws (X, Y) can be set as desired.
• Setthedimensionusingthespannerandlockthescrewwiththescrewnut
• Checkdimensionwithatestdrilling
Label revolver handle (3.4) using the included stickers
The revolver is located on the back of the machine.
• Removerevolver
3.4
