16

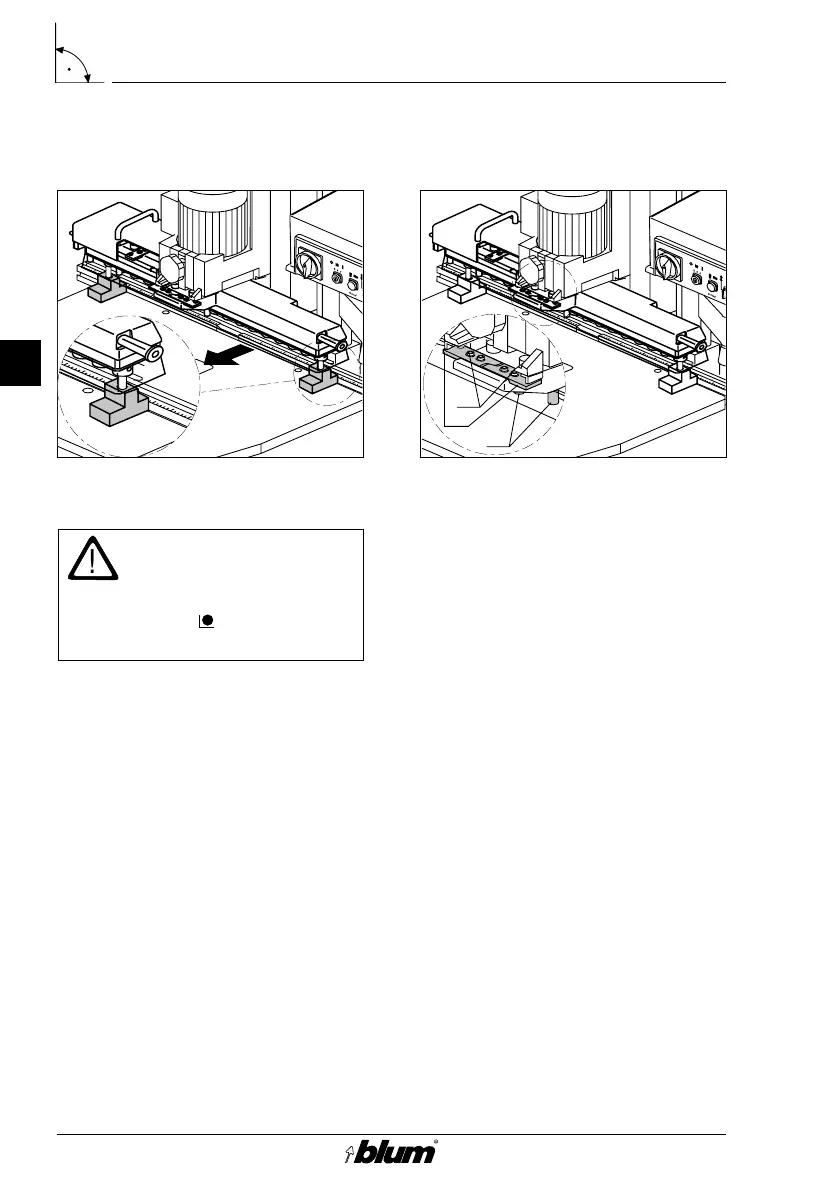

4. Parallel setting
Caution!
Make sure that the pre-
selector has been set to
position (set-up).
• Press start button and keep de-
pressed
- the vertical drilling unit will move
downwards
• Pull worktable forwards till ruler rests
snugly against adjusting blocks
• Clamp down table in this position
• Check angle of drilling head and
correct if necessary
• Firmly tighten adjusting screws (E4)
at the front
• Push additional centring devices
(E2) outwards until they rest against
centre squares and fasten with hex
set screws (E3)
• Release start button
- the vertical drilling unit will return to
its initial position
• Tighten adjusting screws (E4) at the
back
Adjusting MZK.2880 to ruler
E
