Mounting
RC66 | 08-2021Blum-Novotest GmbH
13
4.2.3 Front kit

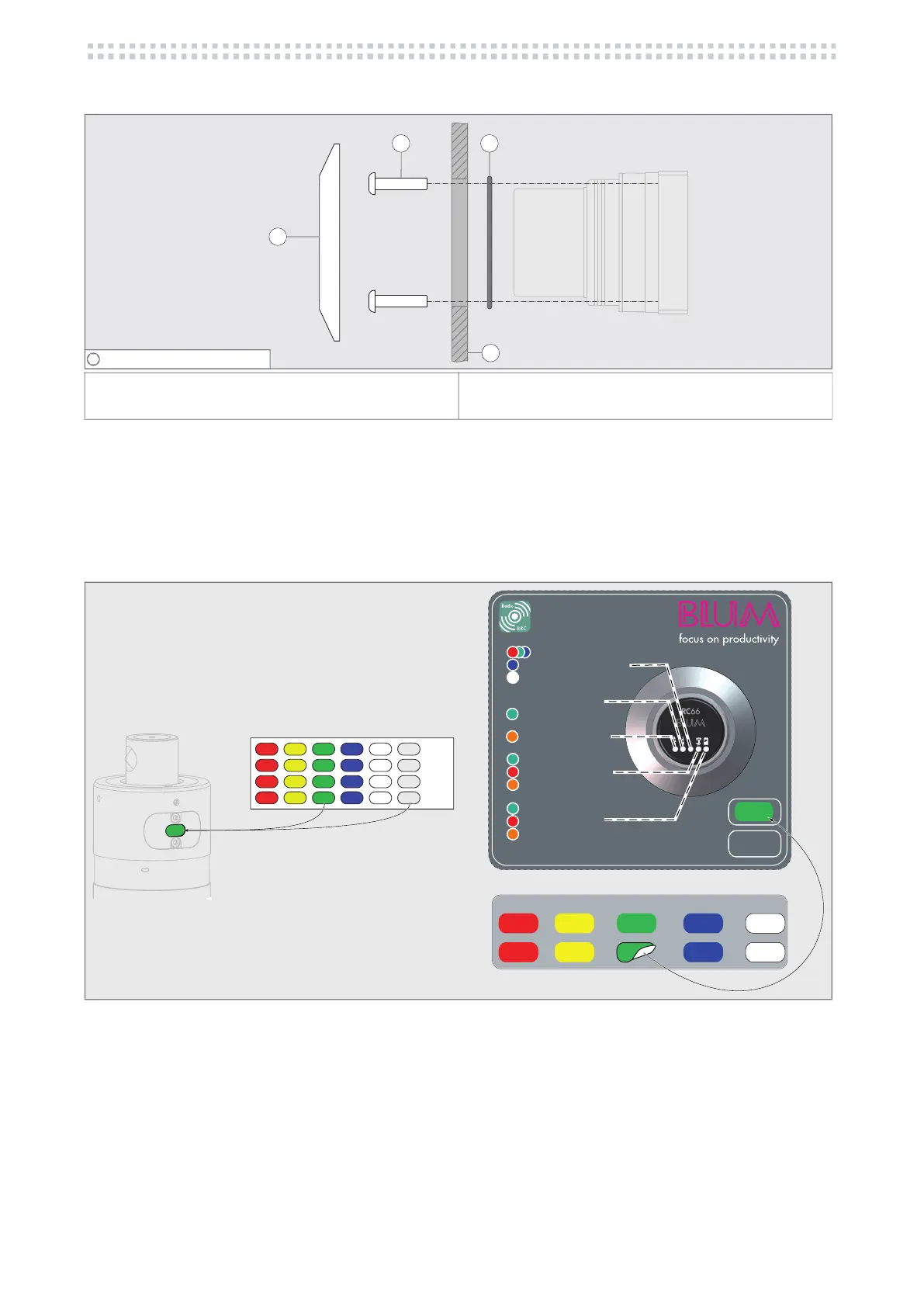

Fig. 4-3 RC66 – Installation with BLUM Front Kit.
4.3 Electrical connection
The electrical connection is described in the installation instructions of the associated interface.
4.4 Device marking
When using different BLUM measuring devices, colour marking of the devices can be helpful to prevent mix-ups.
Always use transparent protective adhesive labels as well.
3
1
2 4
3 mm (M4) – 3,0 N·m max.
(1) Cover ring
(2) 4× holding screws M4×25 (ISO 7380)
(3) Machine wall
(4) O-ring 40× 1.5(NBR 70)
Blum-Novotest
Item No.: 176973
RC66
Battery o.k.
Battery low
No communication
www.blum-novotest.com
Send command
Initial position
Probe deflected
No communication
Probe 2:
Probe 1:
Standby
Mode TC1 ... TC6
Pairing
No reception
Reception o.k.
Off
Mode
