Description of the TOUCH VOL and I.T. VOL keypad
P. 1 Cold sparkling water dispensing button (only FIZZ model)
P. 2 Room-temperature water dispensing button
P. 3 Cold still water dispensing button
P. 4 ENERGY SAVING button (on the back in I.T. VOL model)
L.1 Led alarm indicators:
RED led on the LEFT - Little or no water at the inlet
YELLOW led on the RIGHT - Little or no CO
2
remaining* (FIZZ model)
L.2 BLUE led (STAND-BY):
Quick flashing - Little or no water at the inlet
Slow flashing - Little or no CO
2
remaining* (FIZZ model)
L.3 GREEN led:
Static - ENERGY SAVING mode active
Flashing - Dose programming mode active
*optional for WAVE FIZZ 30 models

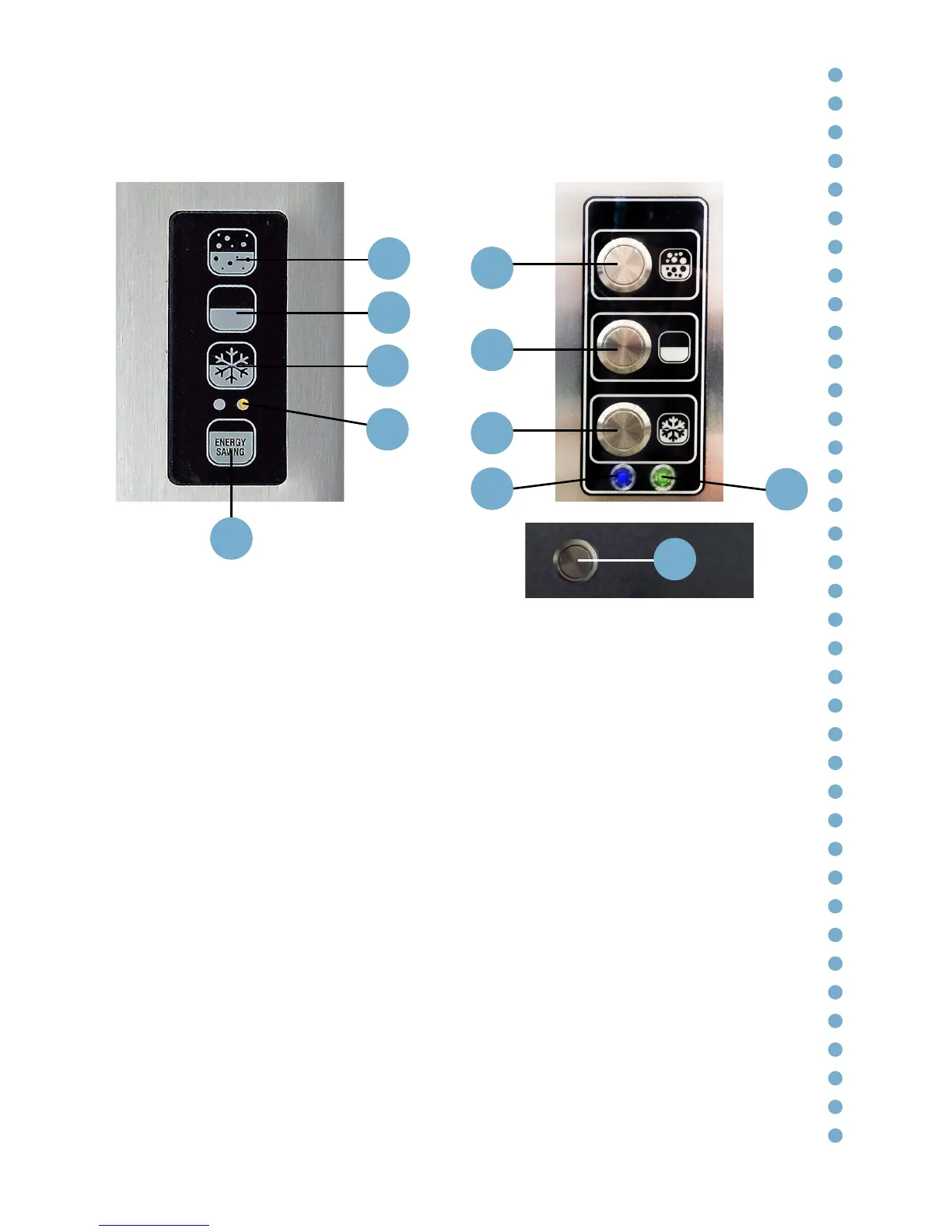

Fig. 13.1 - TOUCH keypad
Fig. 13.2 - I.T. VOL keypad
Fig. 13.3 - Rear view
P. 1
P. 2
P. 3
P. 1
P. 2
P. 3
P. 4
P. 4
L.1
L.2
L.3
