HMXL88ARC USER MANUAL
Contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk
25

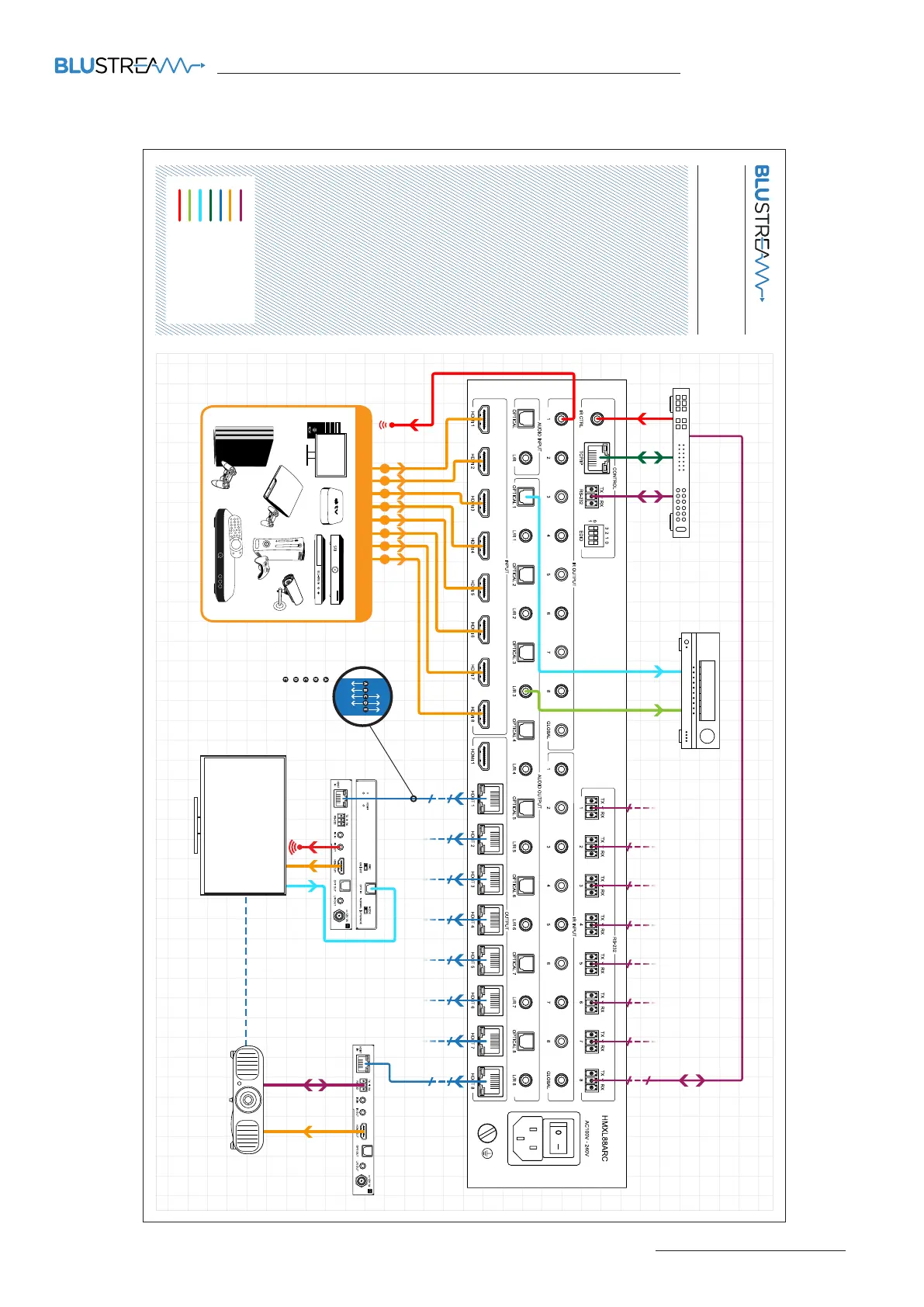

Schematic
Example Schematic
RS-232
HDMI
CAT Cable
Network Connection
Optical Digital
Stereo Audio
IR
HMXL88ARC
Maximum of 8 x 4K 60Hz 4:4:4 Sources
AVR
Control Processor
1 2 3 4 5 6 7 8
24V PoC
HDMI
IR
RS-232
ARC
RX70CS
RX70CS
1080p to 70m, 4K to 40m Max
4K Projector
4K Display
Max 8 x 4K Displays via HDBaseT™
For 24V PoC, HDMI ARC and Optical Audio Return functionality,
the RX70CS HDBaseT™ receiver must be used.
