EN Installation
Before starting operations in this section:
1. A mobile air-conditioner shall be installed in
theatandemptyplaceallaround.
2. Find a place where there is power supply
nearby.
3. Socket wiring should be in accordance with
the local electric safety requirements.
4. Don’t block the air outlet, and the required
distance around should be at least 30 cm.

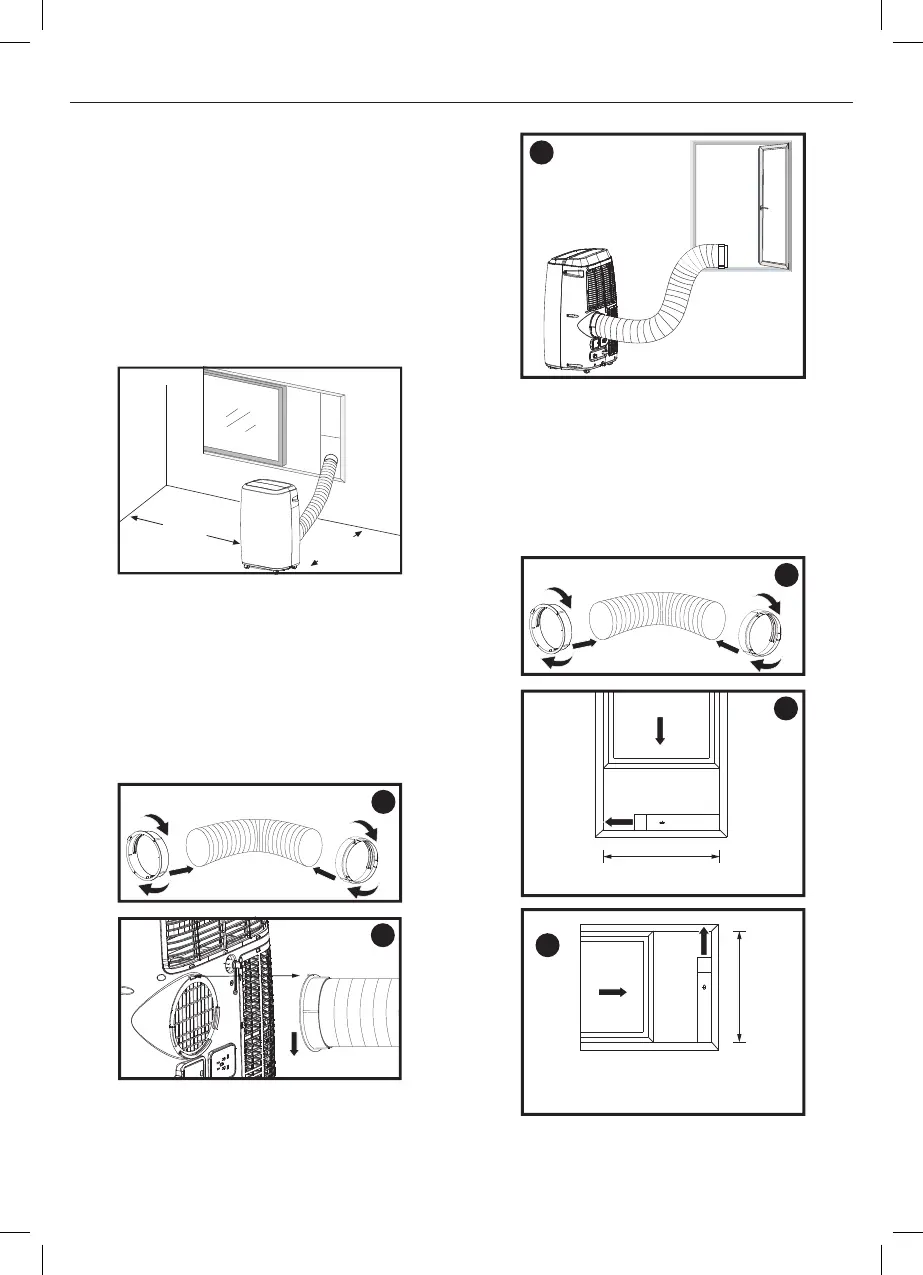

5. As shown in Fig. 1, install the exhaust hose,
and adjust the window position well.
≥30cm
≥30cm
Fig.1
Temporary installation
1. Twist both ends of the exhaust hose into
the housing adaptor #10 and the window
connector #11. (clockwise)
2. Insert the housing adaptor clip into openings at
back of the air conditioner (See Fig. 2) .
3. Put the other end of the exhaust hose to the
near windowsill.
Fig.2
1
Clockwise
2
Insert down
Aligning the
bayonet
3
Window slider kit installation
The installation manner of window slider kit is mostly
in “horizontal” and “vertical”, no much difference in
actual process.
As shown Fig. 3 and Fig. 3a, check the min. and
max. size of the window.
1
Clockwise
2
Fig.3
Window width
min: 67.5 cm
max: 123 cm
2
Fig.3a
Window height
min: 67.5 cm
max: 123 cm
