SCREEN REMOVAL PROCEDURE

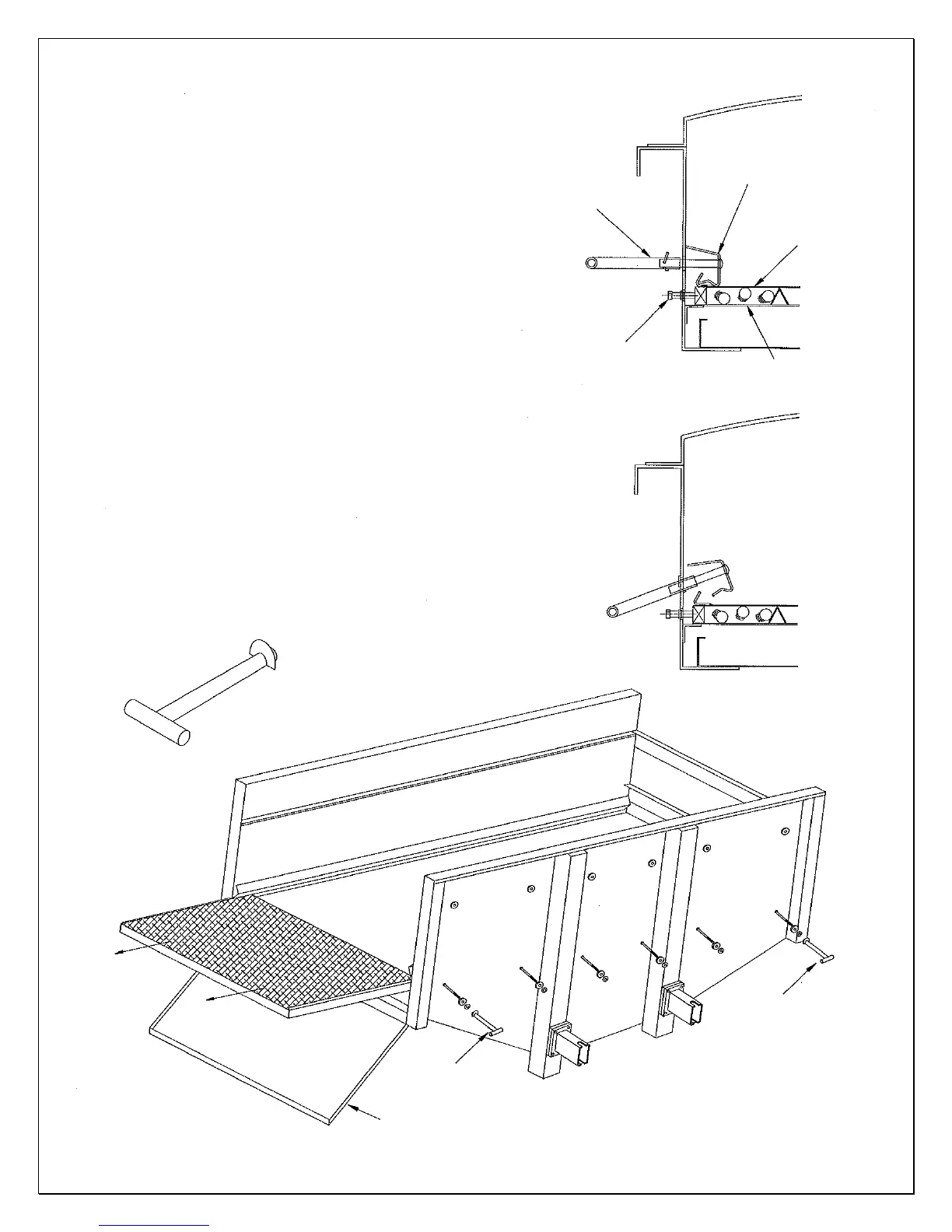

The BM&M Screen is supplied with Screen Removal Tools.
BM&M part number SR-2
1. To remove the screens open the infeed door or discharge chute
(whichever is more convenient).
2. Remove all nuts, timber washers and rubber washers, located
on the outside of the machine along either side.
3. Screw the SR-2 tool onto the tension skirt redi-rods at the
infeed and discharge ends, leaving the stamped word “Top” to
the top (these do not have to be tight).
4. Push the SR-2 tool in and down until the notch hooks into the
machine’s side plates. This will hold the tension skirts up and
out of the way for easy screen removal.
5. Remove the screen by sliding it out.
6. If the screen mesh to be replaced is very fine, place two screen
guides down the length of the machine (we recommend 1” dia.
PVC pipe). This will help the new screen to glide in without
binding up on any protrusions. After the new screen is located
in the machine and is ready for the skirt tensioning, remove the
screen guides.
7. Release the SR-
2 tool to bring the tension skirts back into
position.
8. Replace the rubber washers, timber washers and nuts onto all
tension skirt redi-rods. Before tightening, make sure the tension
skirt is positioned in the screen hook.
9. Screen tensioning should not be excessive as screen damage
may occur. A slightly compressed rubber washer is usually
acceptable. The screen cloth should be taut and even across
the whole deck. Hand-tighten the nuts for finer screen meshes.
SHOWN WITH
BALL DECK
