BMC RESmart Service Manual

10
Service Manual for RESmart
®
CPAP and AutoCPAP V1.5
Appendices
Appendix A:
Device Configuration
1. Main device

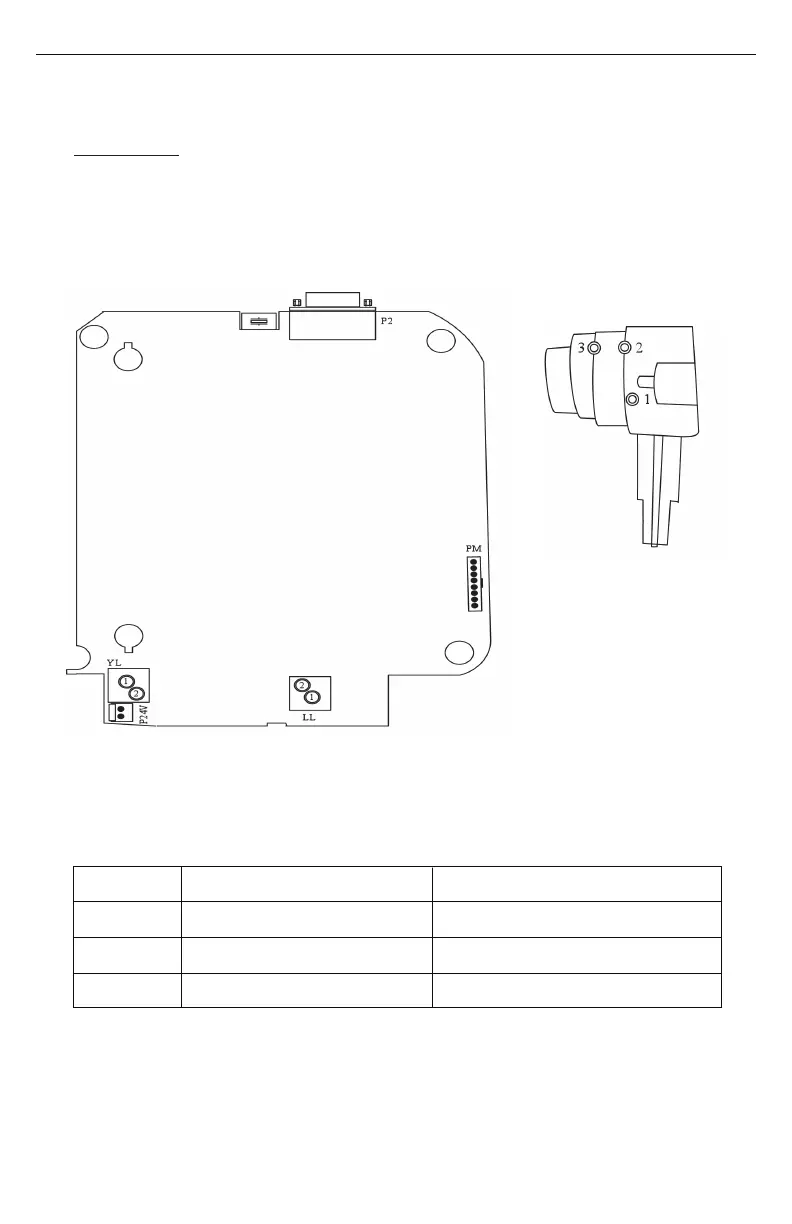

Fig. A - Main board (backside)
Fig. B Fig. A Specification of canal
1 Hole #1 on sensor YL ℃2mm, ℃4mm, L12cm
2 Hole #2 on sensor LL ℃2mm, ℃4mm, L12cm
3 Hole #1 on sensor LL ℃2mm, ℃4mm, L8cm
Table 1
Fig. B – Outlet (leftside)
Hole #1, 2 and 3 in Fig. B, connect to sensor YL and LL via silicon rubber canal.
Specified in Table 1:

BMC RESmart Specifications

General

Pressure Range	4-20 cmH2O
Data Storage	SD Card
Automatic Altitude Adjustment	Yes
Leakage Compensation	Yes
Device Type	CPAP
Sound Level	<30 dBA
Display	LCD
Modes of Operation	CPAP
Heated Humidifier	Optional
