BMC RESmart

14
Service Manual for RESmart
®
CPAP and AutoCPAP V1.5

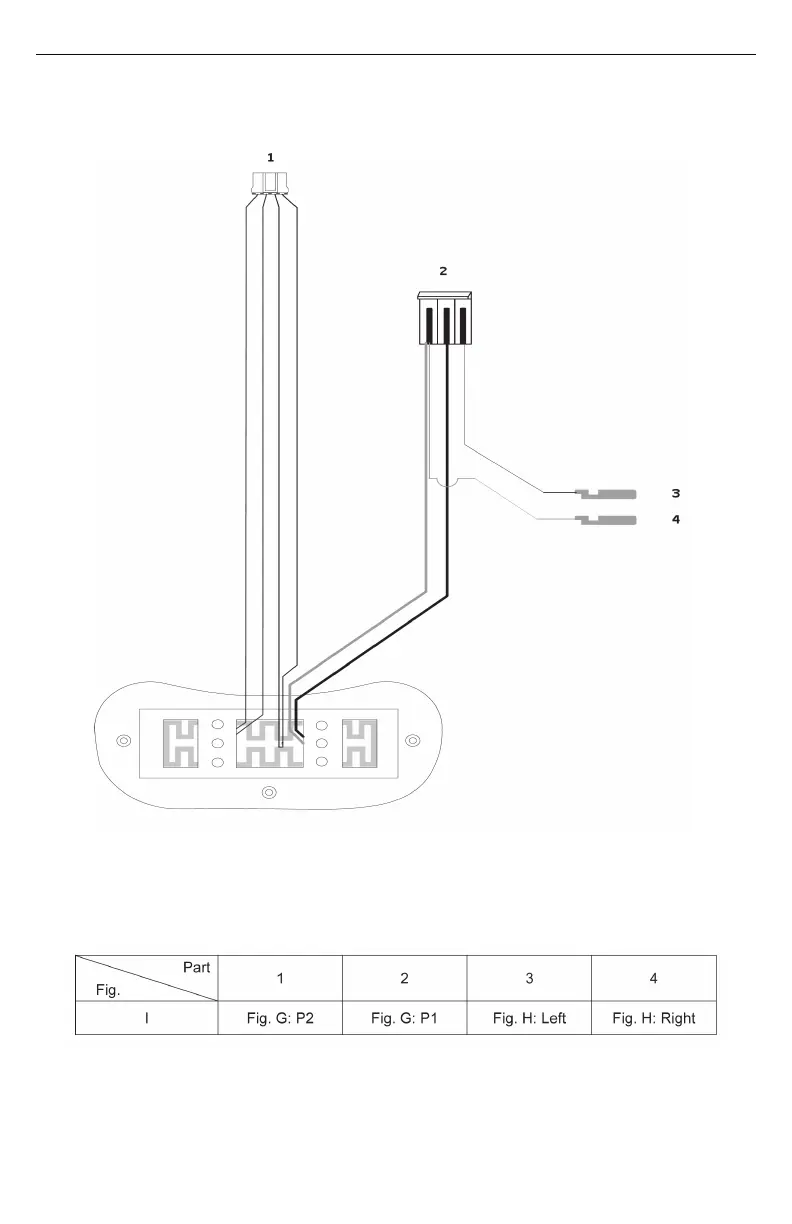

Fig. I – Heater PCBA
Connecting relationship:
Table 3
3-pin plug
Black Black Orange Orange
Gray Gray Blue Blue
4-pin plug
Power Reed to Humidifer
Heater PCBA
