BMC RESmart

15
Service Manual for RESmart
®
CPAP and AutoCPAP V1.5
Components Illumination

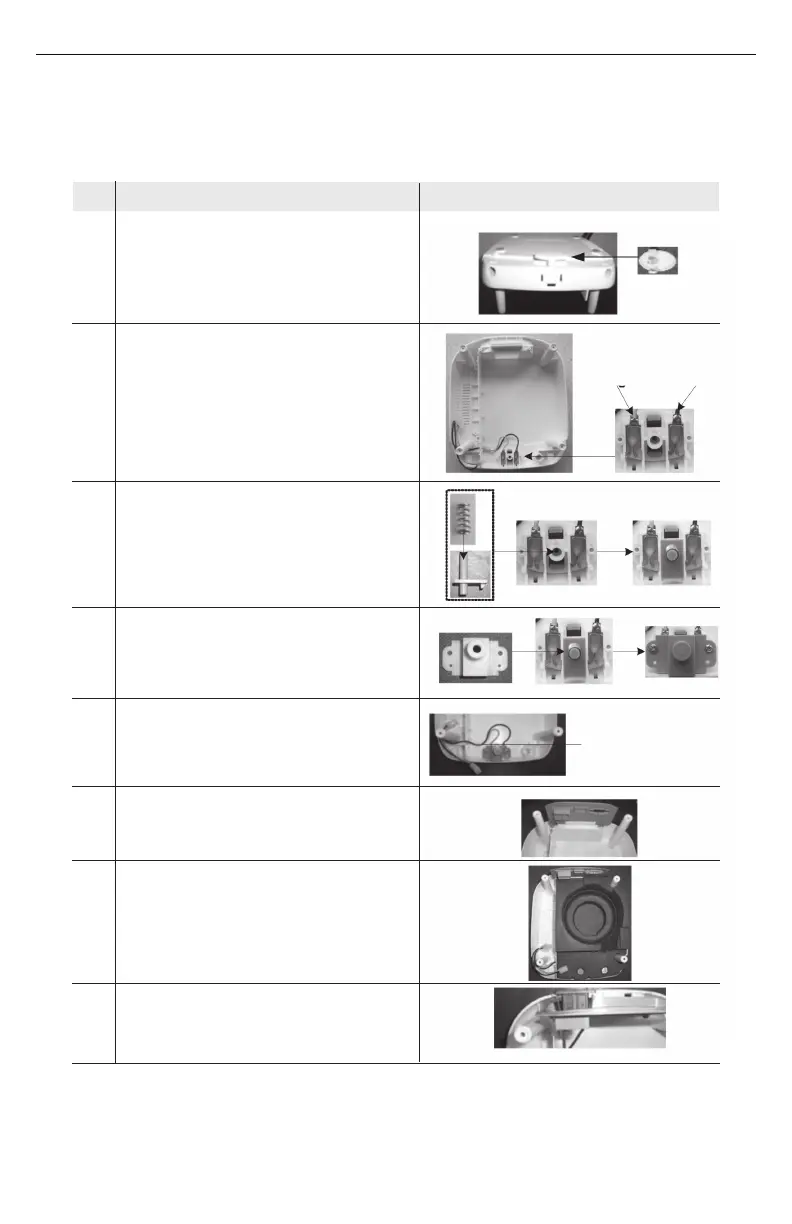

1. Device Inside
S/N Assembly Figure
Orange Black
Power wire to
humidier
1 Insert humidifier locker on the
shield bottom.
2 Insert humidifier power supply reed
on the shield bottom as per Fig. E
and F.
3 Assembly the humidifier locker and
button spring.
4 Put fixing on the spring and fix by
screw (2×3mm*8mm).
5 Put power wire.
6 Assembly the shield back on the
bottom, fix by screw
(2×3mm*8mm).
7 Assembly foam (bottom) into
shield bottom.
8 Assembly AC power socket on
the shield back (character face up).
