16
Service Manual for RESmart
®
CPAP and AutoCPAP V1.5

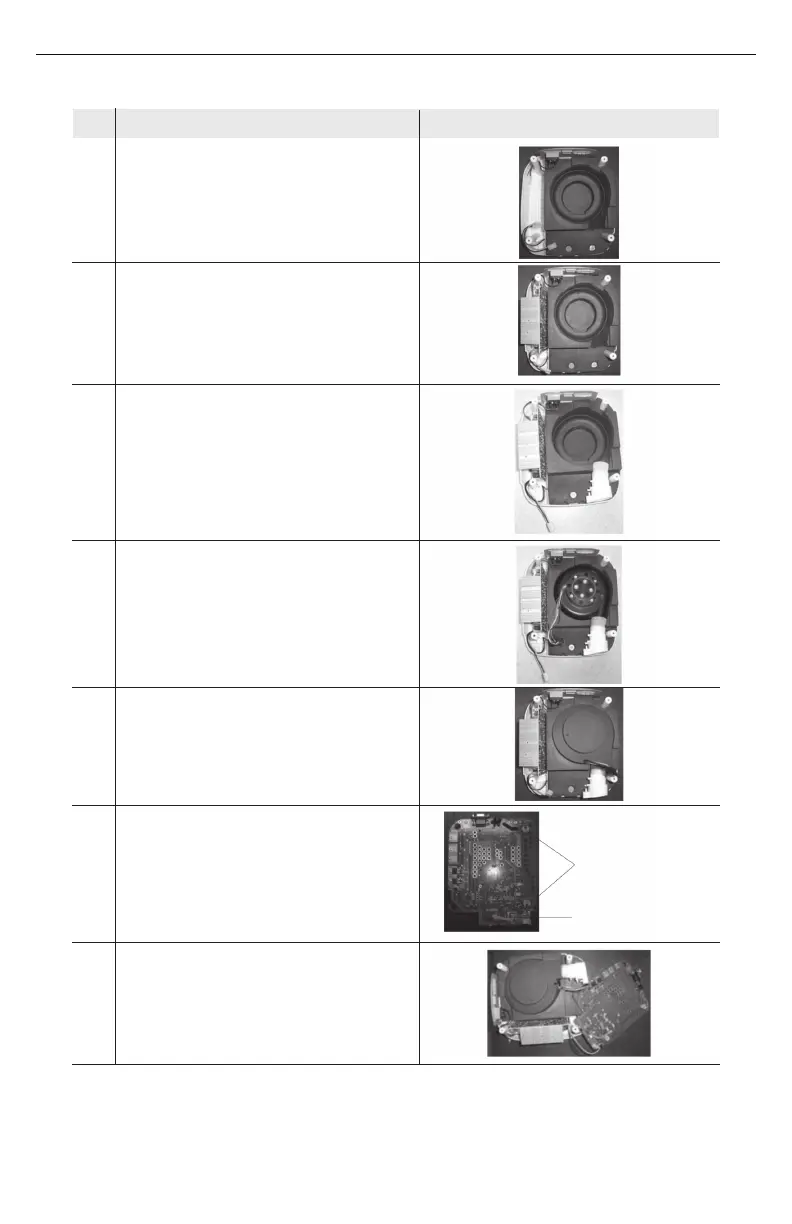

S/N Assembly Figure
Pressure Sensor
FCBA Fixing
Clip
9 Clean up the wire.
10 Assembly power PCBA in the
socket and connect all plugs. Clean
up the wire.
11 Connect outlet to blower connector,
fix by clip.
12 Connect blower to connector and
fix by clip. Put the integrated one in
the right place.
13 Covered by foam cover and clean
up wires.
14 Assembly fixing clip on the main
board PCBA.
15 Plug the 8-pin plug of blower in
the socket PM plug #2 as in
Fig. E in the socket P24 on the
main board PCBA.
To Next Page
