Service Manual for RESmart
®
CPAP and AutoCPAP V1.5

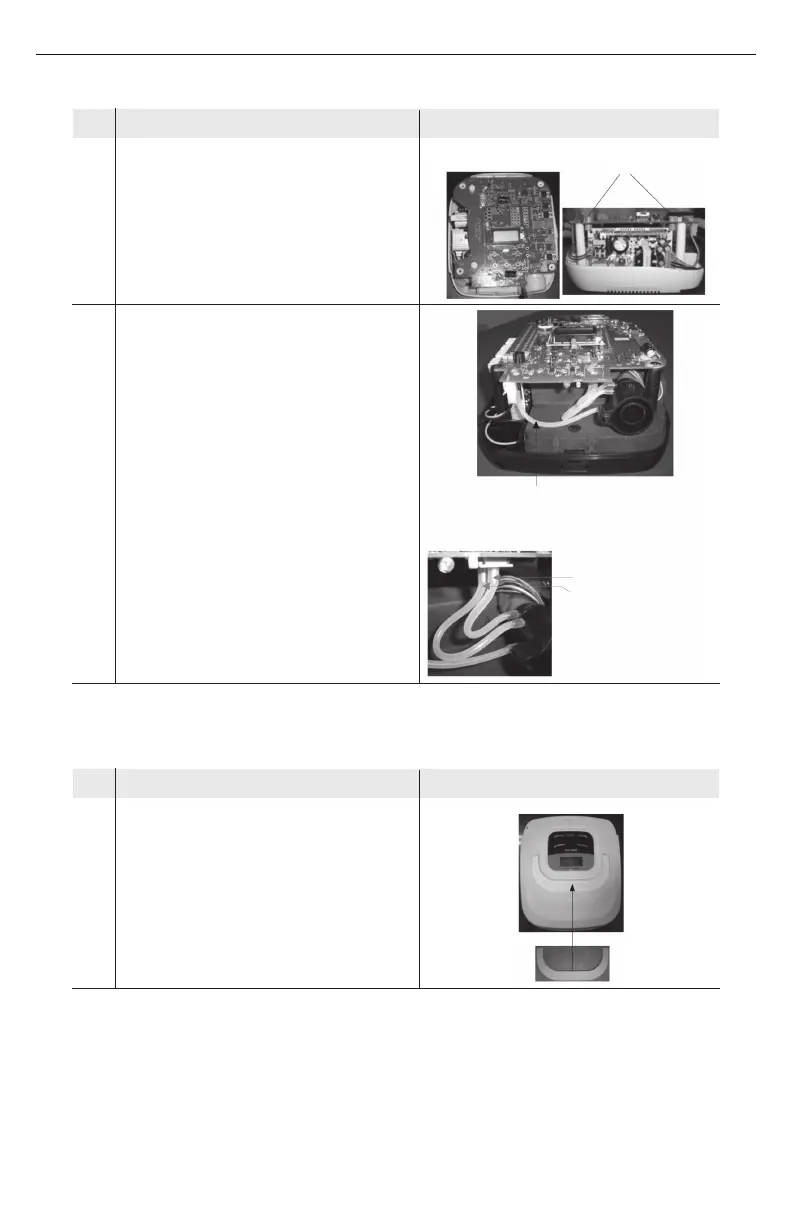

S/N Assembly Figure
12cm canal for YL Sensor
FCBA Fixing Pole
16 Assembly the main board PCBA on
fixing pole and make sure the clip
clamps power PCBA.
17 1. As per Table 1, connect sensor
YL to outlet by silicon rubber
canal.
2. Connect sensor LL to outlet by
silicon rubber canal.
8cm canal for LL Sensor
12cm canal for LL Sensor
S/N Assembly Figure
2. Device Outside
18 Put handle in the socket on
shield cover.
To Next Page
