18
Service Manual for RESmart
®
CPAP and AutoCPAP V1.5

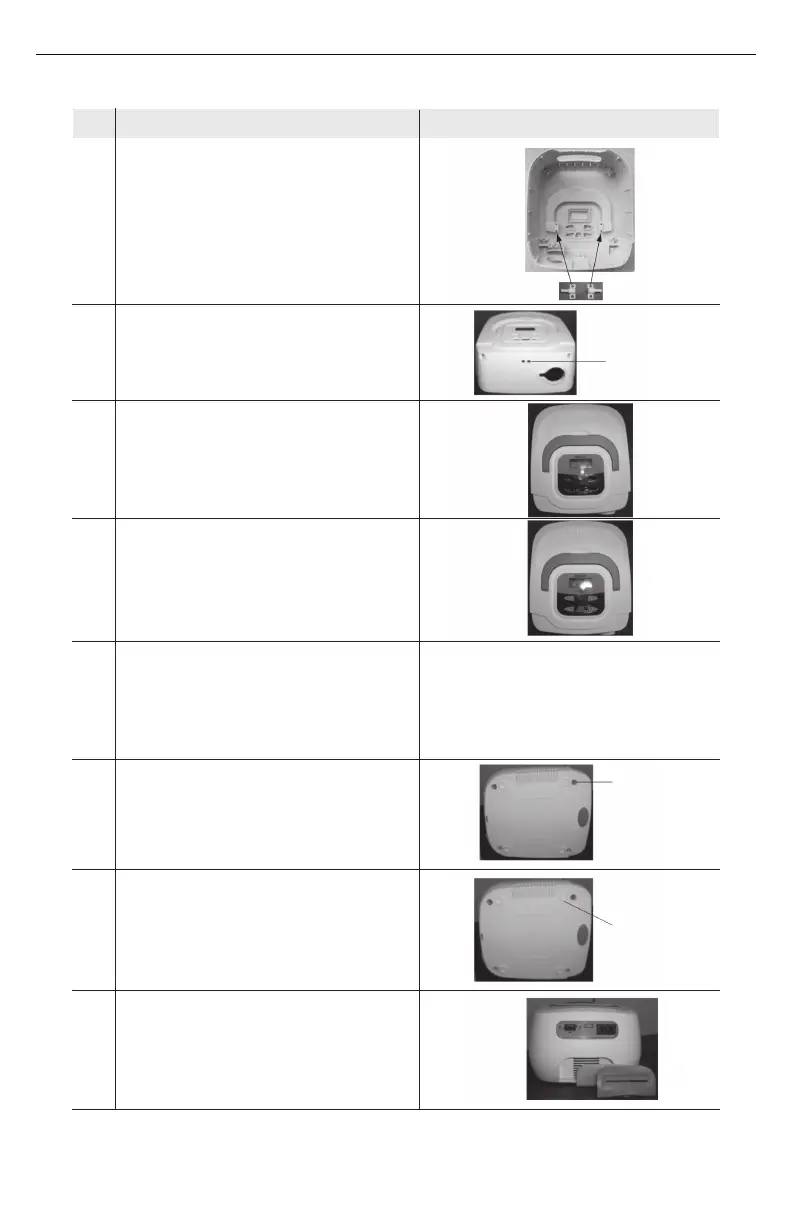

S/N Assembly Figure
Infrared
Window
19 Assembly handle fixing to handle
and fix by screw (4×3mm*8mm).
20 Assembly the infrared window.
21 Assembly and fix the panel.
23 Put on the key button.
24 Assembly shield cover on the
bottom, adjust the position of outlet
and make sure it is clamped in the
right socket.
25 Fix the shield by screws
(4×M3*10mm).
26 Stick four device pads.
27 Put in filter and assembly the cover.
Screw Hole
Device Pad
To Next Page
