Service Manual for RESmart
®
CPAP and AutoCPAP V1.5

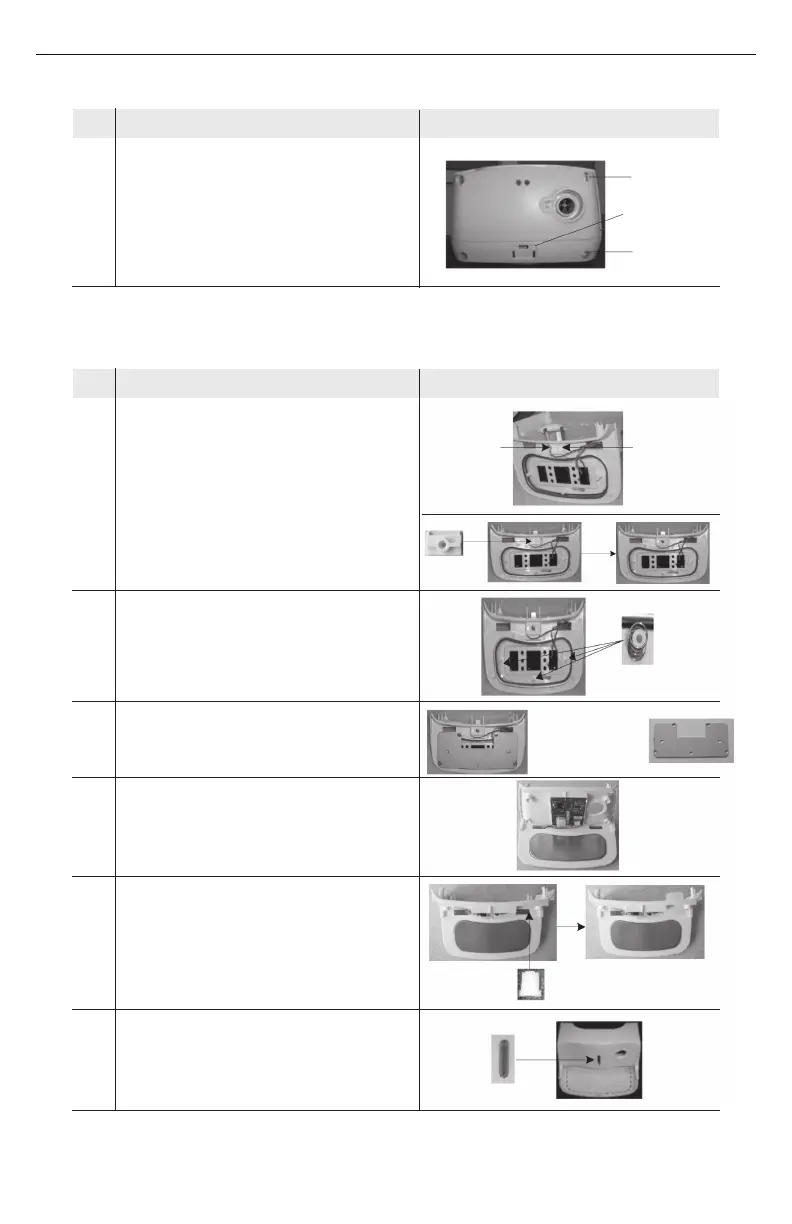

S/N Assembly Figure
28 Put on all plugs if necessary
(without humidifier).
S/N Assembly Figure
2. Humidifier
1 As per Fig. H, assembly the
heater plane and wire. Fix them by
screw (3mm*8mm).
2 Put spring on each of three poles
on heater plane.
3 Assembly the scaleboard on
the heater plane and fix by screw
(3mm*8mm).
4 As per Table 3, assembly heater
PCBA and wires.
6 Put on light window.
5 Put the humidifier inner connector
on t he shield.
Black Orange
Scaleboard
Plug (up)
Power Plug
Plug (down)
To Next Page
