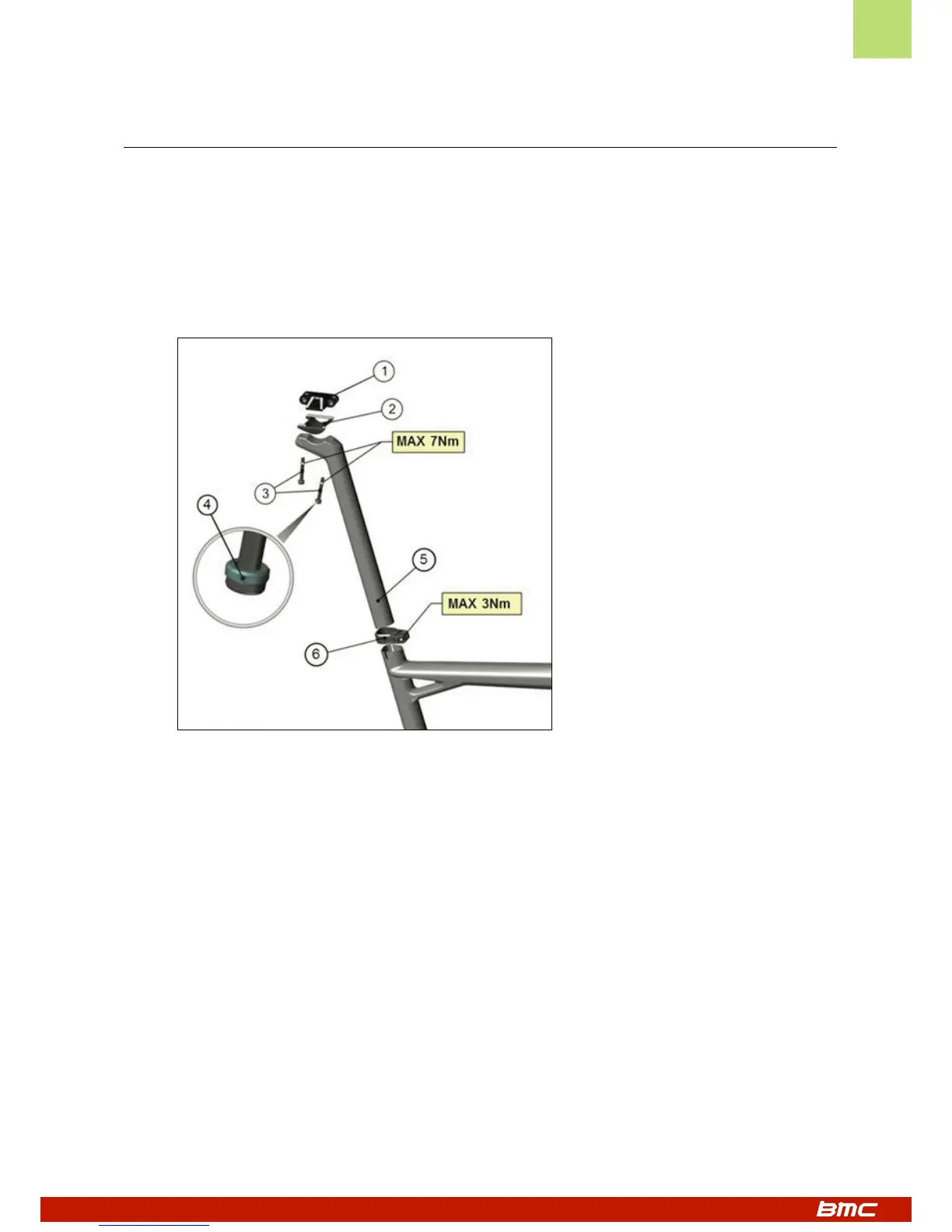

Seat clamp & seat post Installation
1. Install the saddle clamping hardware, by applying carbon friction paste at the lower clamp interface (between 2 and 5).
Bolts (3) are then assembled with upper seat clamp (1) through the seat post (5).
Take care that the spherical washers (4) are together with the bolts when assembling, and don’t exceed the maximum
torque of 7Nm when tightening.
2. Apply carbon friction paste on the lower part of the seat post (5) as well as on the inside of the seat tube.
3. Ensure that the seat clamp (6) is mounted on the frame.
4. Insert the seat post into the seat tube.
5. Tighten the seat post clamp bolt to 3Nm max.
