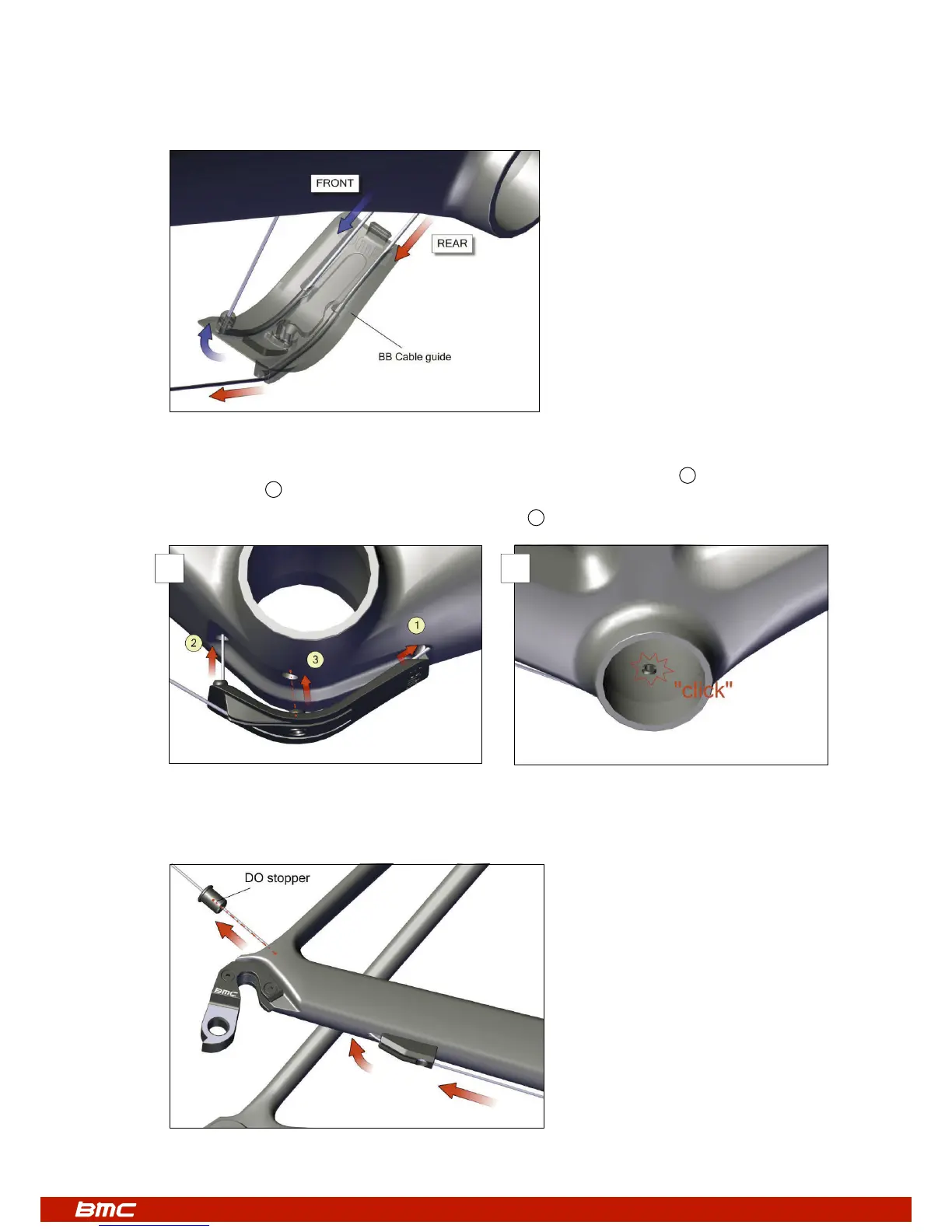

3. Run the cables through the BB cable guide and take care on the respective grooves for RD cable and FD cable.

4. Insert the FD cable through the hole running behind the bottom bracket.

5. Place the cable guide inside the speciﬁc recess below the bottom bracket by clipping it front side ﬁrst 1 , then by pushing

straight on the FD cable 2 (5).

Complete by pushing in the middle of the cable guide straight on the clip 3 until you hear the “click” sound (6).

6. Run the RD cable through the cable guide below the chain stays, enter it at the bottom side of the chain stay and exit it through

the hole above the drop out.

Then, put on the DO stopper and push it inside the hole.

5 6
