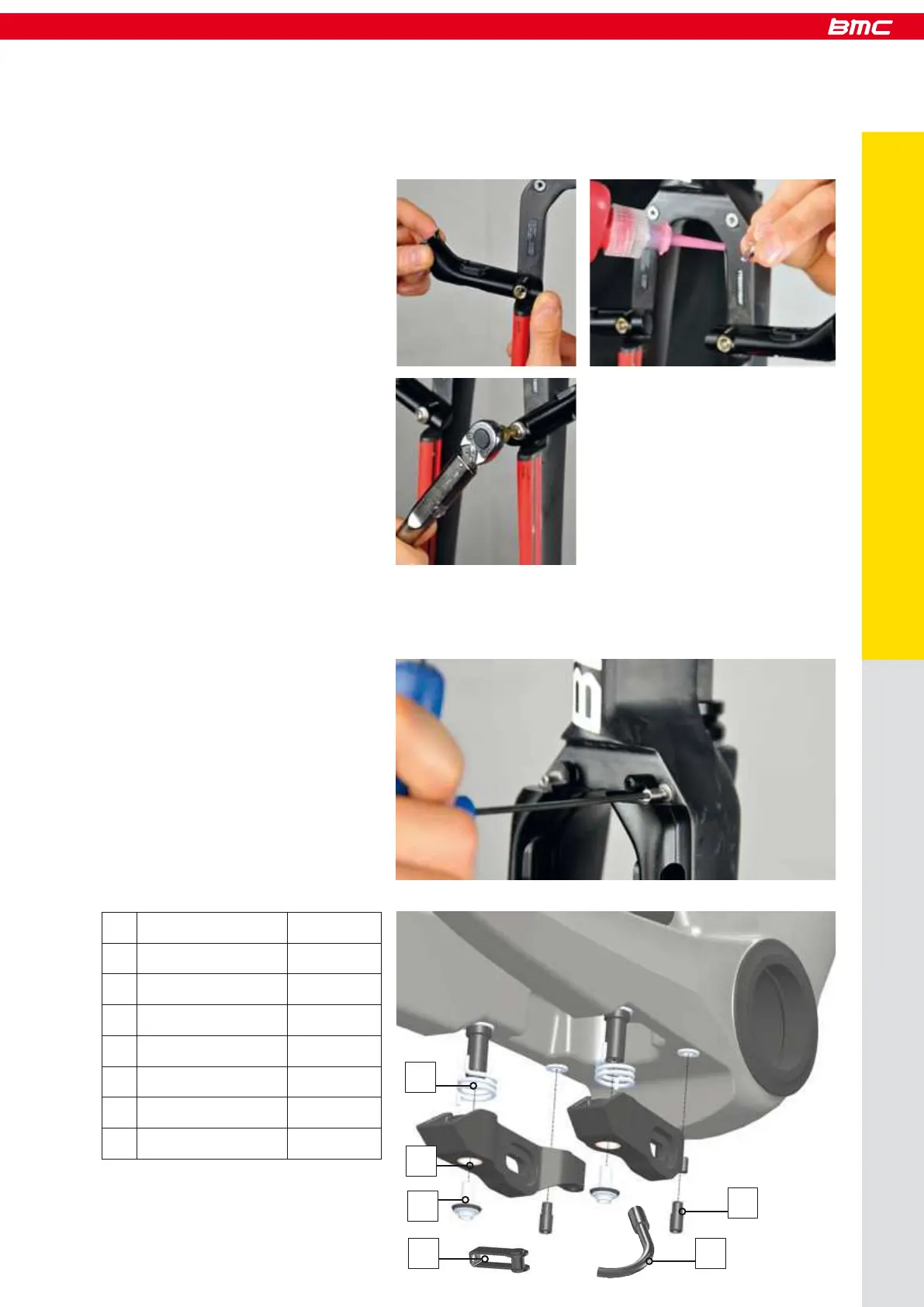

BMC TMR01

- The arms should be tightened in “open position”, and then place the stoppers to maintain them in position.
Torque 4.5 Nm
- Each brake arm should operate smoothly from the stoppers position.
- Front and rear brake arms have a different shape, but function and installation are the same.
Description Part N°
Rear brake set 210535
1 Springs
2 Brake arms
3 Brake bolts
4 Brake stoppers 210540
5 Pipe 210538
6 Pipe holder 210539
4 5
6
7
16 | 17
Building
1
2
3
4
65
Building a timemachine
