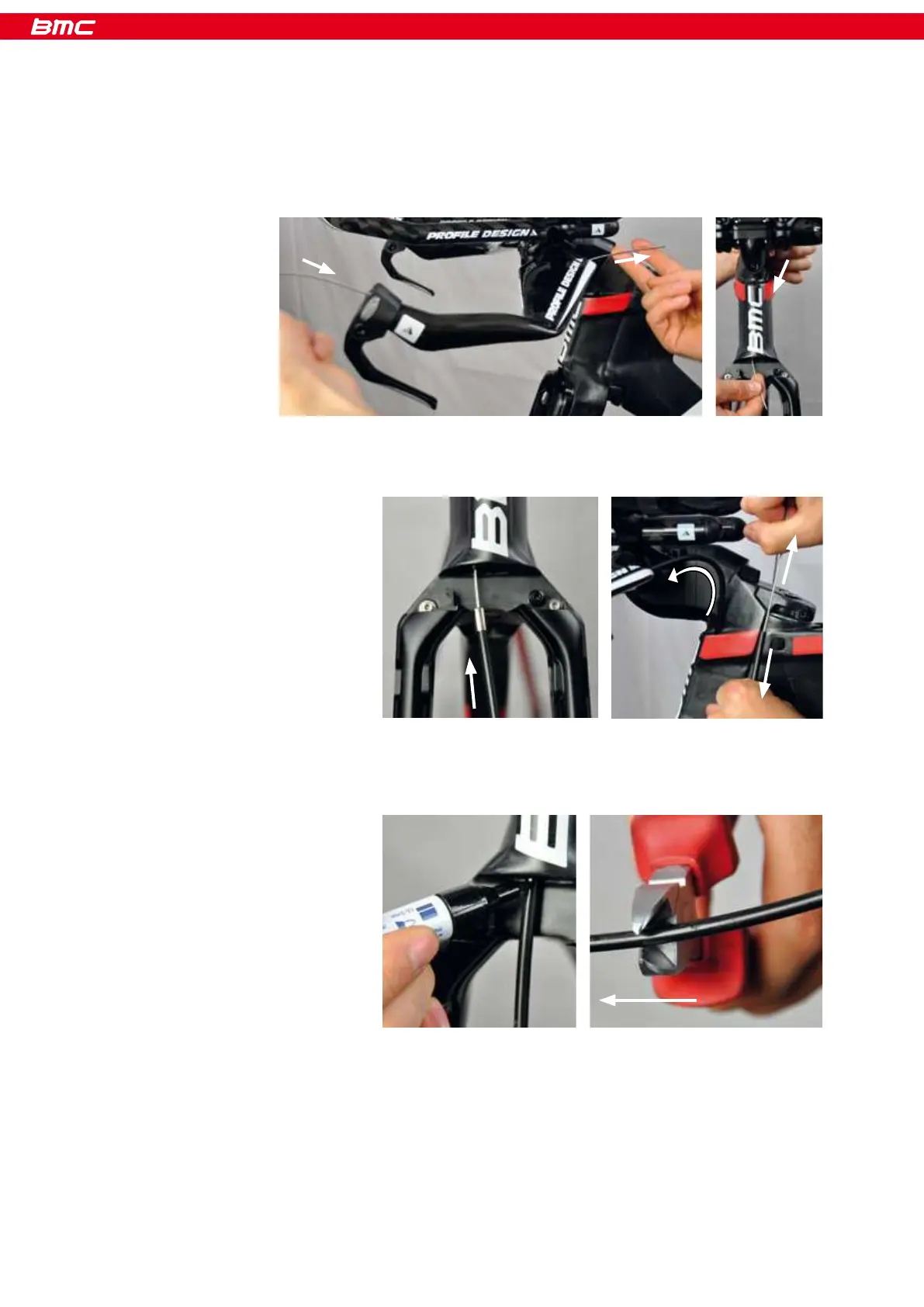

Brake cable routing (front)
- Run the brake cable in the bars (1), and then inside the fork (2), either on left or right hand side depending on how you run your brakes.
- Use the cable as guide to slide in the housing (3). Pull on the cable until the housing sits well in the brake lever (4).
- Mark where the housing exits the fork (5), then take it out of the fork and cut it shorter 15mm from the mark (6).
Reinstall the housing into the fork, using the cable as guide.
To handlebars
1 2
3 4
5
6
