The timemachine frameset is 100% compatible and retrocompatible with both mechanical (Shimano, Sram and Campagnolo) and
electronic (Shimano) groupsets.
The following instructions will help you to install the shifting cables inside the timemachine frame, it will not guarantee a proper function
of your groupset.
Therefore, before installation, we recommend you to read the instructions provided by the manufacturer of your groupset.
Mechanical shifting
Please note:
The cable routing uses full housing from handlebars to rear derailleur, and full housing from shifting lever to front derailleur cable stopper.
Cable routing

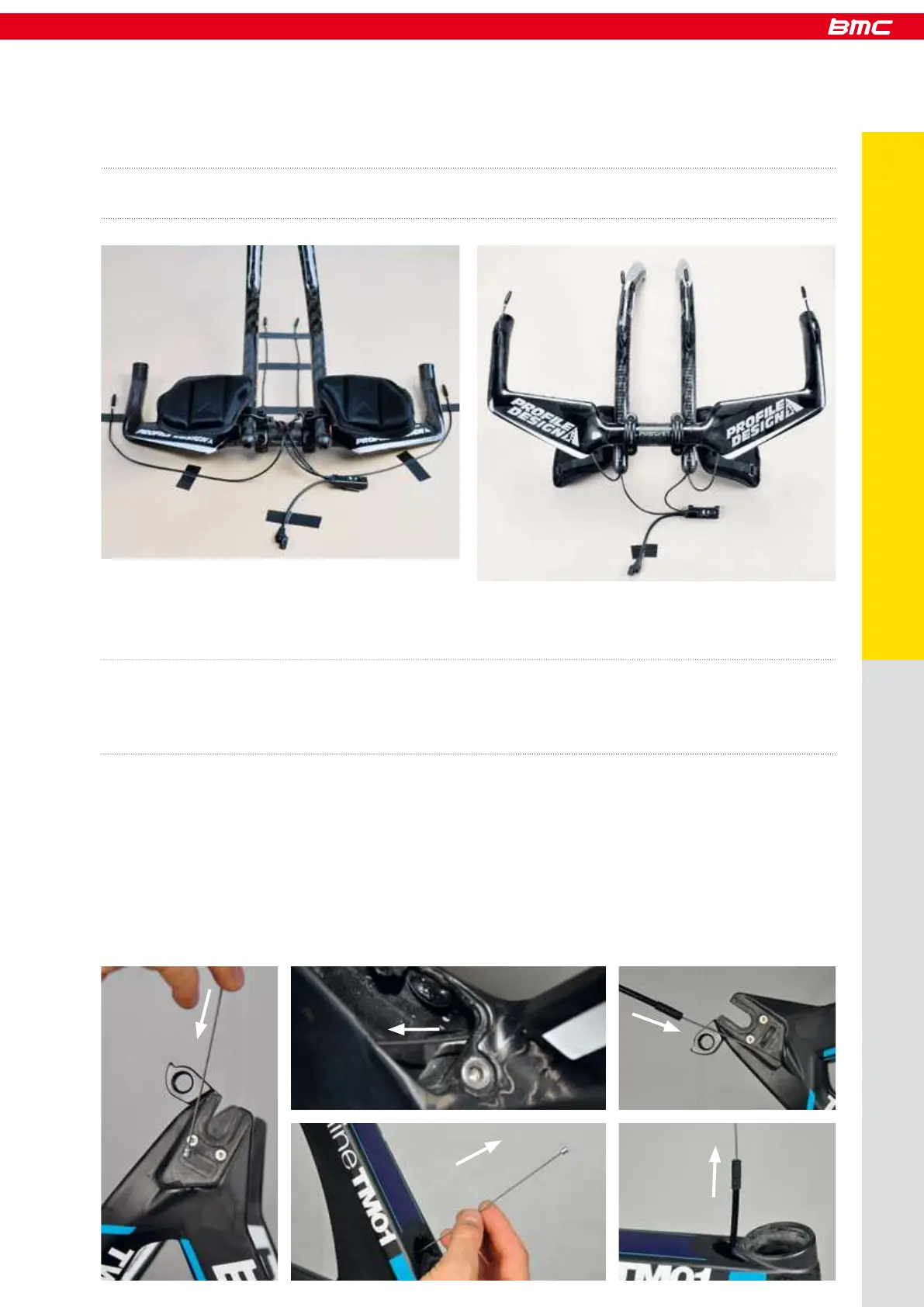

Handlebars specifics
It is possible to cleanly integrate the Di2 wires into the handlebars delivered with the timemachine complete bikes.
Refer to Shimano documents to position the cables.
- Place the frame vertical, drop outs on top. Enter at the drop outs (1), run the cable over the BB (2) and push towards head tube (3).
Use a cable to guide the rear derailleur housing (4 and 5).
1
2 4
3
5
Red
Green Yellow
White
26 | 27
