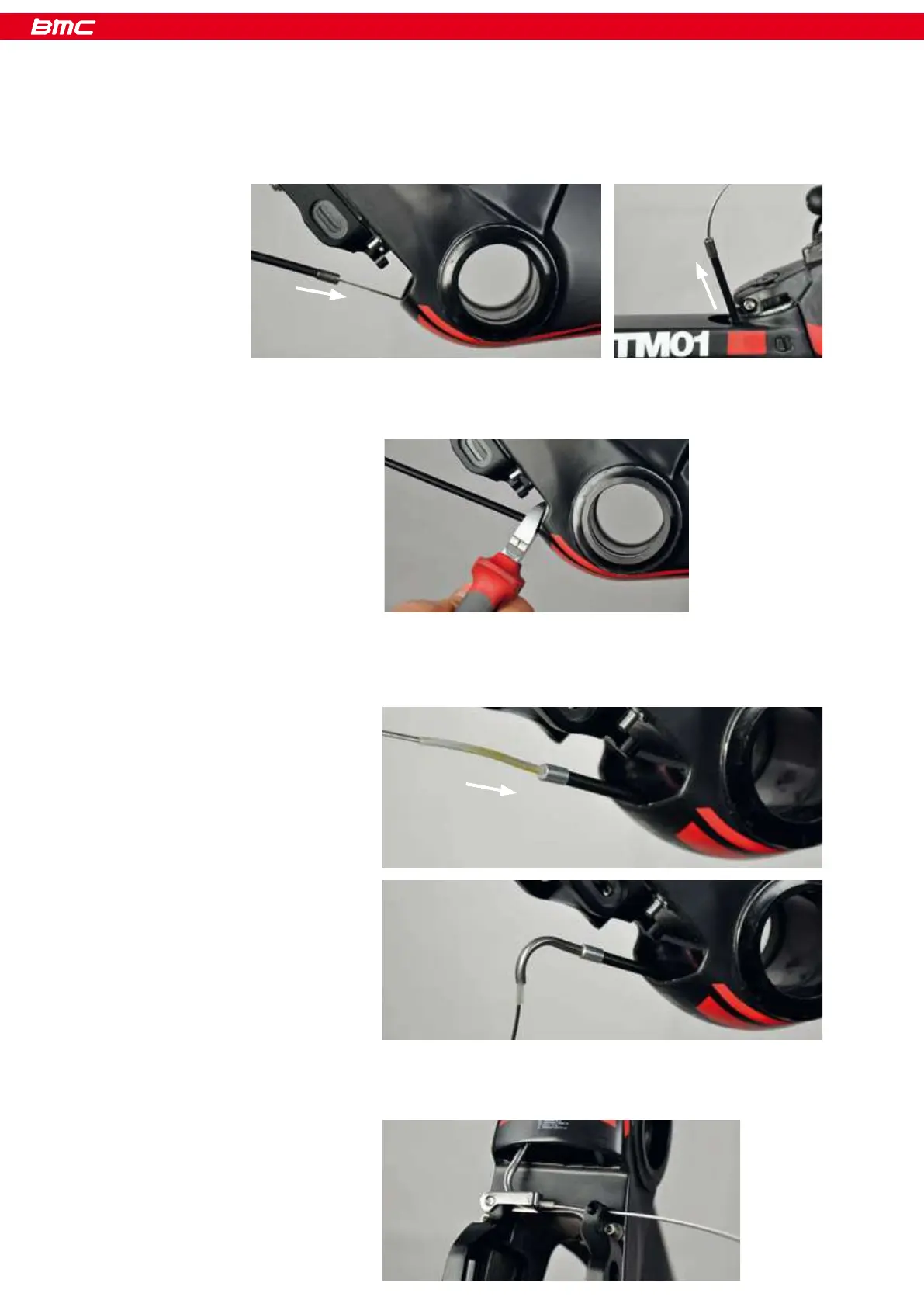

- Installing the pipe: Always run the housing of the pipe onto the cable first (6), then run the cable into the metallic pipe (7). Pull the
cable until the housing sits well inside the pipe.
- Install the pipe holder while running the brake cable through the brake arm (8).
- Use the cable as guide to slide in the cable housing (3).
- Remove the cable and cut the housing at the exit of the frame, below the BB (5).
3 4
5
6
7
8
Building a timemachine
