BMC TMR01 - Page 38

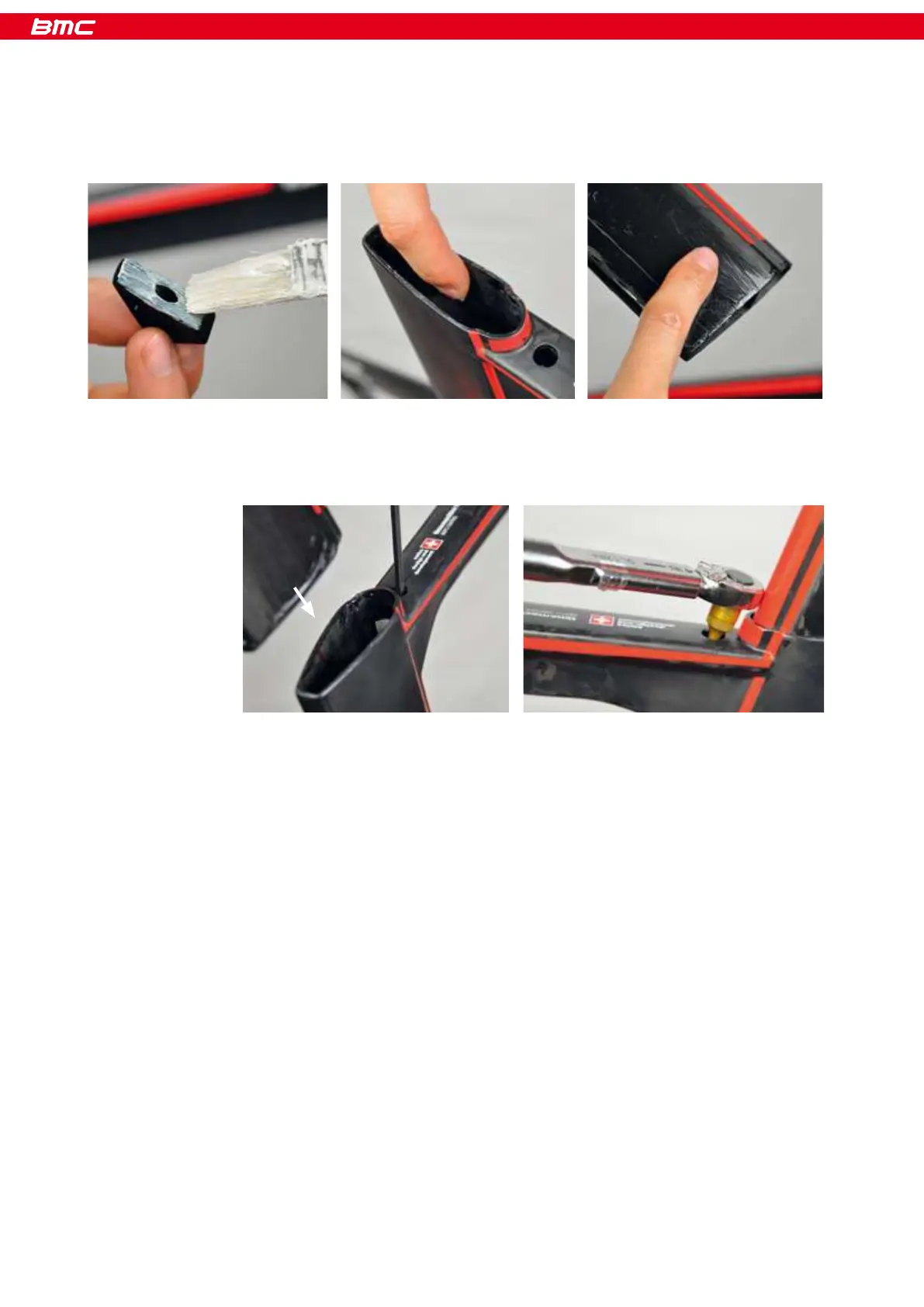

- Apply grease in between the 2 wedges, friction paste in the seat tube and on the seat post.
- Insert the seat clamp unit into the frame and hold it in place with the 4mm allen key. Insert the post and tighten the bolt.
Max torque 7.5 Nm.
1 2 3
4 5
Building a timemachine
