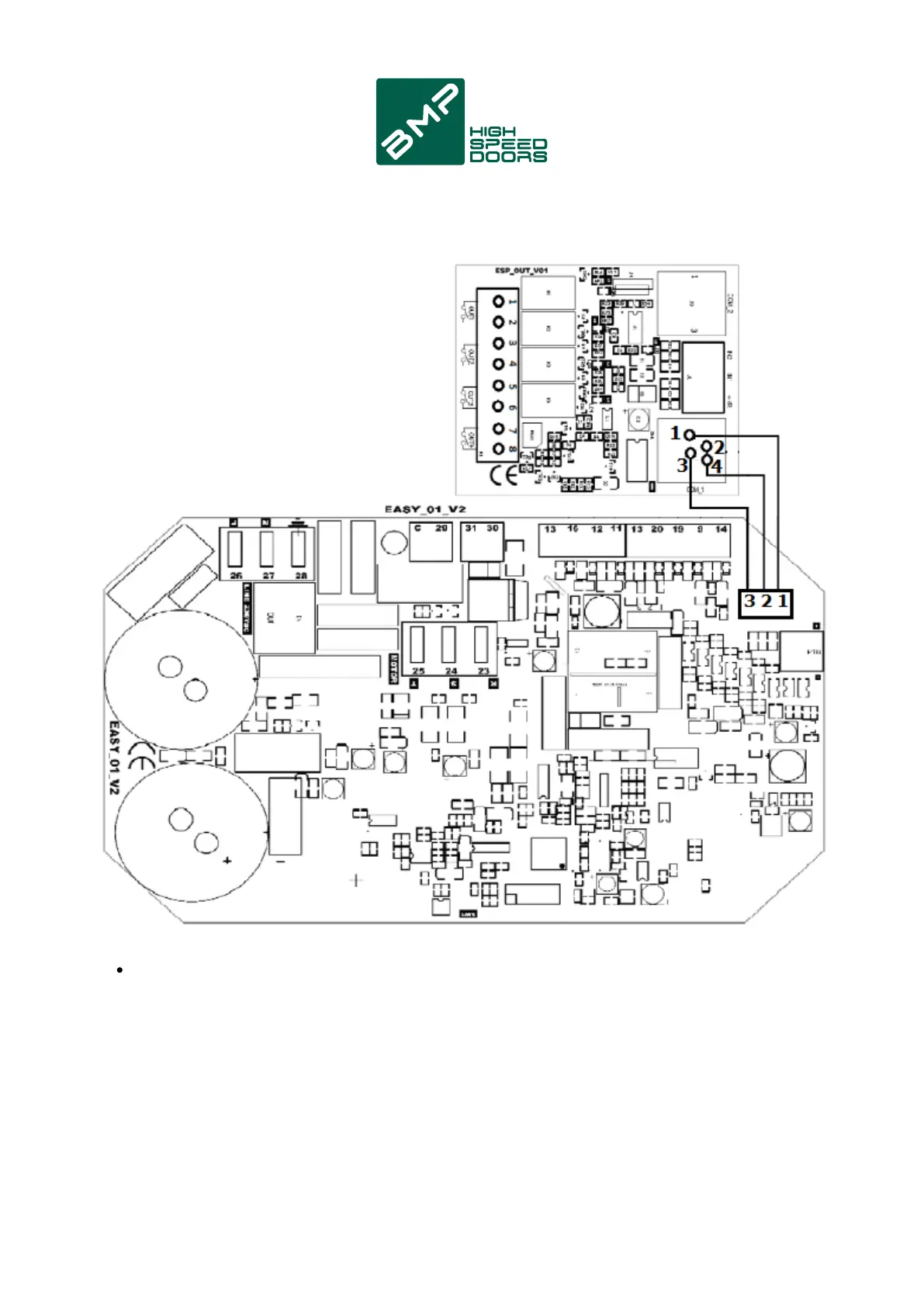

4. ESP_OUT interface card connection
Connect the inverter to the interface board via RJ11 cable and enable
communication by putting DIP4-ON (on ESP_OUT board)
4
