Before installing, check that there is no power supply.

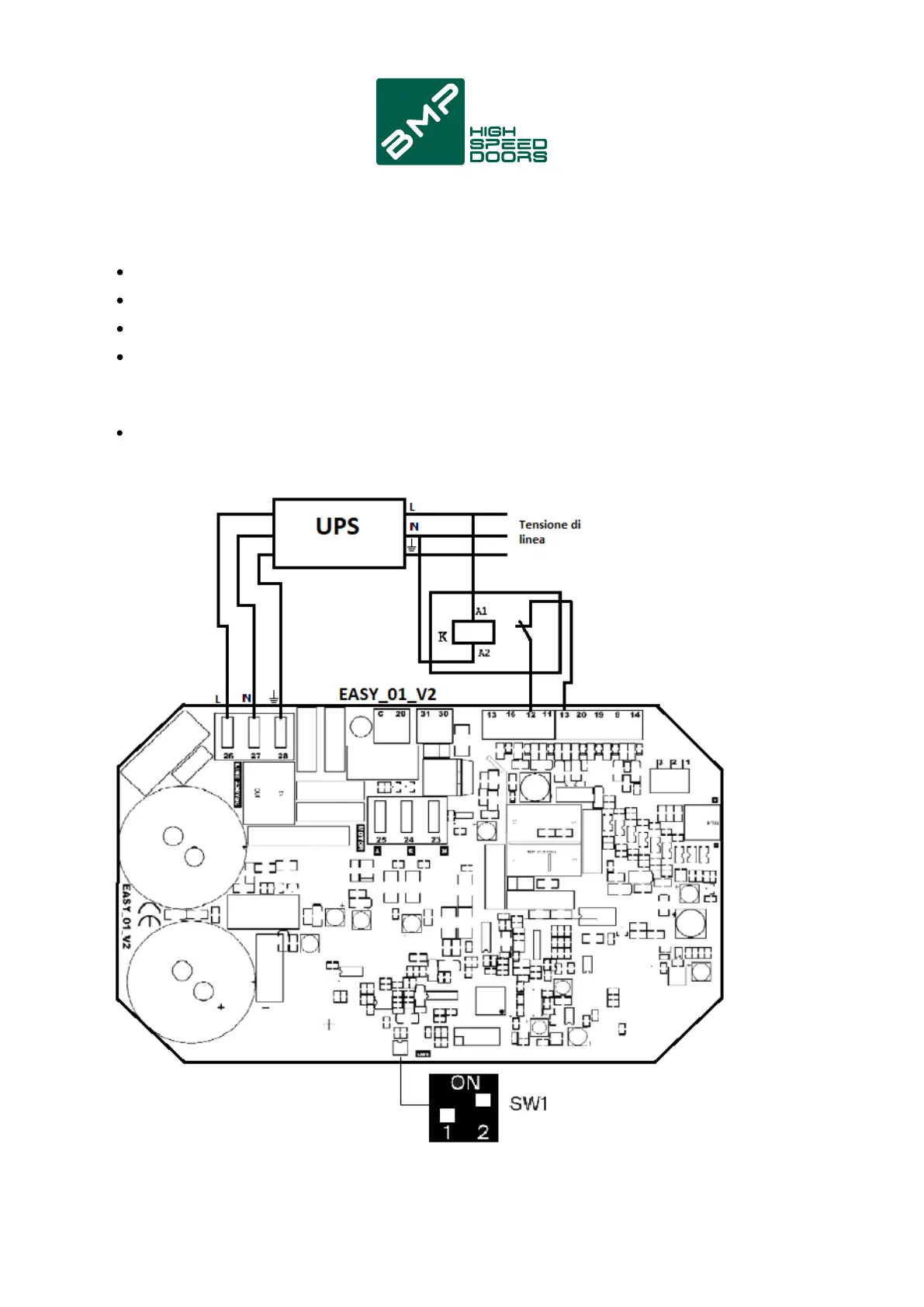

Connect the ups as in the figure
Enable operation with ups by setting dip2 of SW1 to ON.
To give the open command for power failure, mount a
230V N.C.(K) relay with contact on input 12 and coil in
parallel on line voltage
By enabling this function, ESP_OUT cannot be managed.
6. UPS CONNECTION
7
