DESCRIPTION OF PARTS
1. MAINS CABLE
The BatteryPlus35-II is pre-cabled with a permanent mains power supply cord
for use with 240V or 110V input power.
2. LOAD TERMINAL BLOCK – COMMON NEGATIVE CONNECTION
Negative wire connection return point for the caravan’s 12V loads.
3. LOAD OUTPUTS – 15A X 2 POSITIVE CONNECTIONS
Used for connecting the positive wire of the 12V loads, outputs 1 & 2
4. LOAD OUTPUTS – 10A X 12 POSITVE CONNECTIONS
Used for connecting the positive wire of the 12V loads, outputs 3 – 14

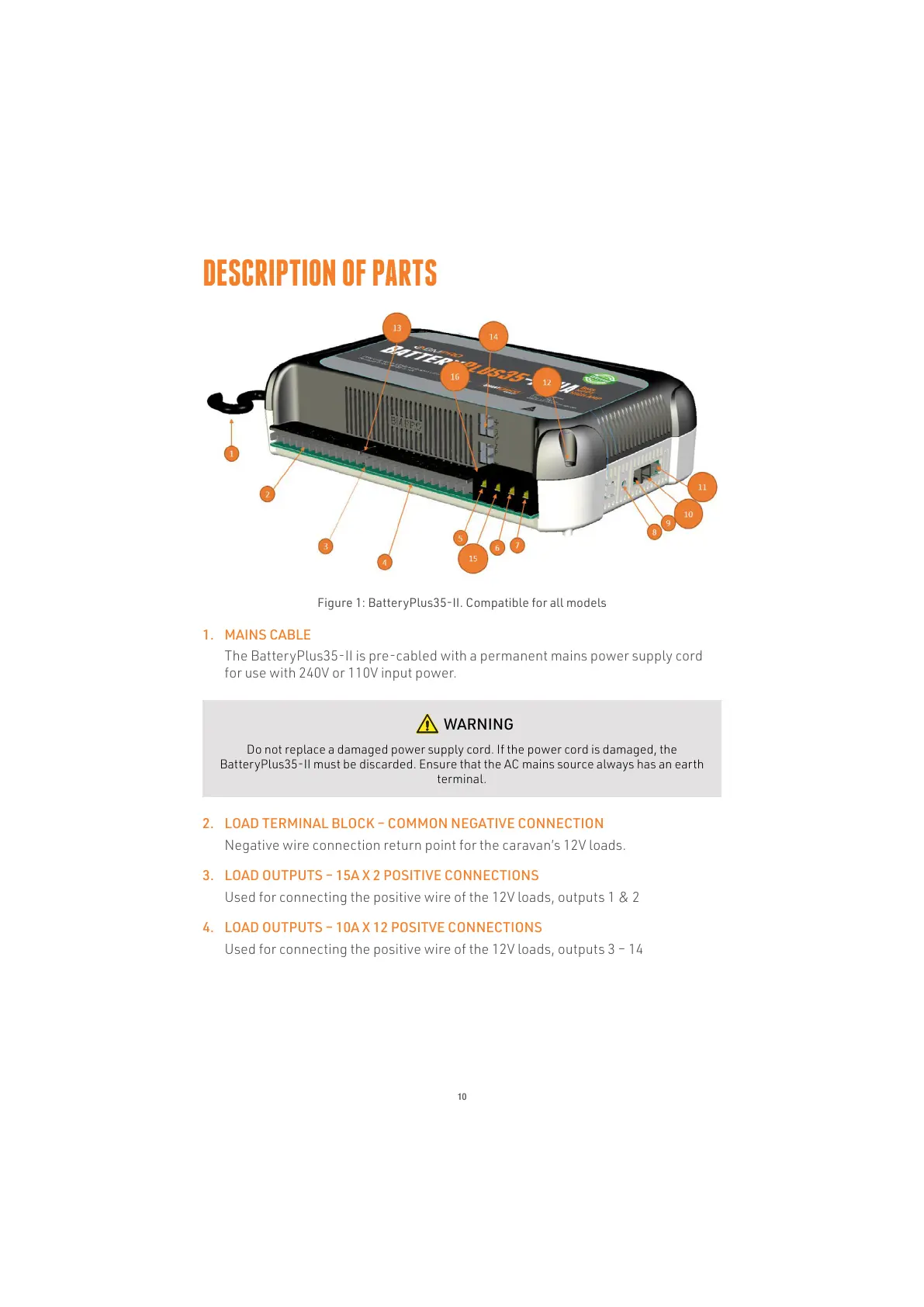

Figure 1: BatteryPlus35-II. Compatible for all models
WARNING
Do not replace a damaged power supply cord. If the power cord is damaged, the
BatteryPlus35-II must be discarded. Ensure that the AC mains source always has an earth
terminal.
10
