MOUNTING
The BatteryPlus35-II should be securely mounted to a suitably rigid surface, using
the four pre-drilled mounting holes.
MAINS CABLE
The BatteryPlus35-II is pre-cabled and fitted with a mains plug. Ensure that the
connections to the mains supply are in accordance with the national wiring rules, and
that the earth connection is installed. For more information, refer to the Mounting
section.
The mains cable must be at least 80mm away from the output cables. For information
on wiring, refer to the Wiring Diagram section.
The plug must be accessible during installation. If this is not possible, an accessible
mains disconnection switch must be incorporated in the mains wiring where the plug
is connected.

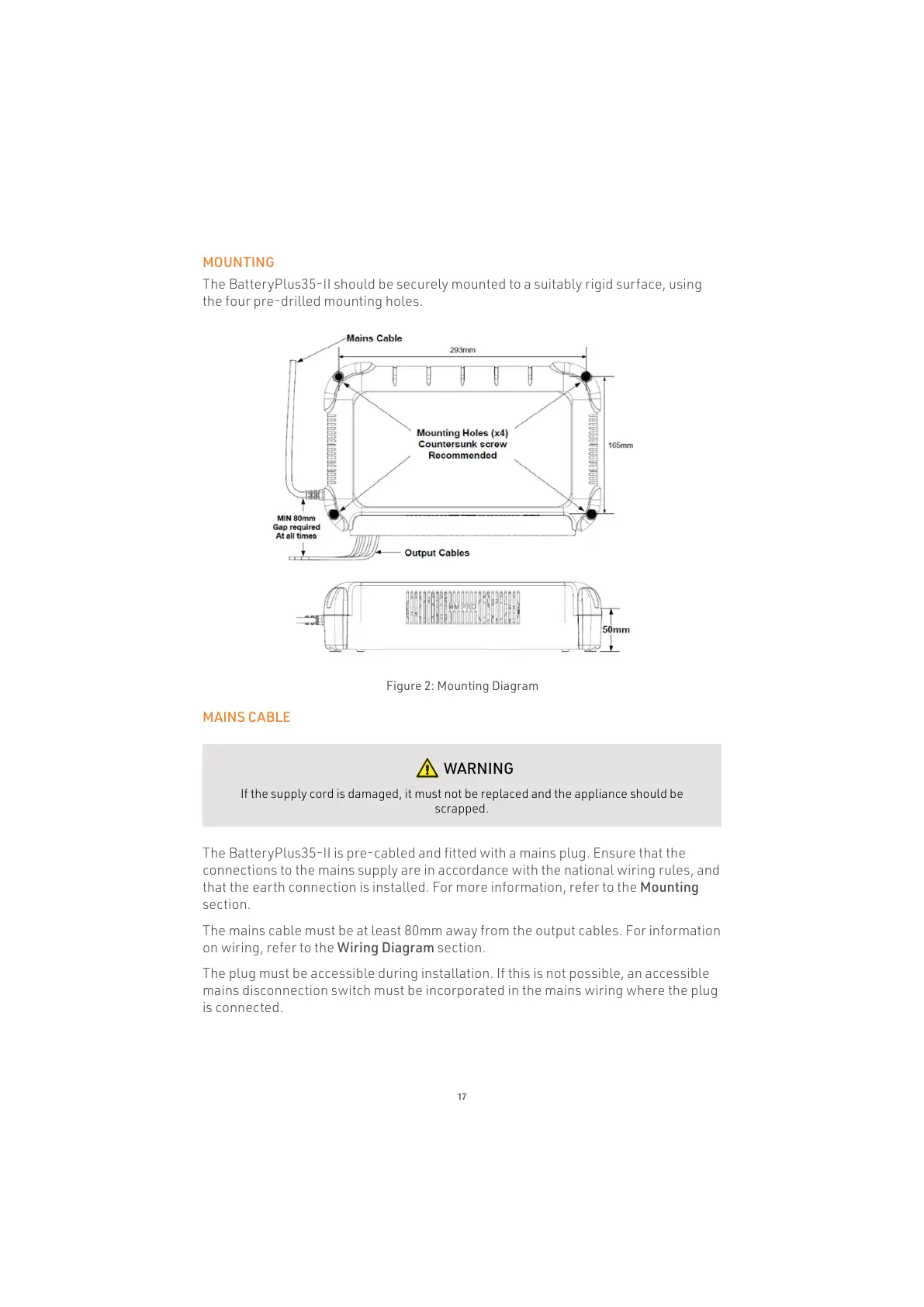

Figure 2: Mounting Diagram
WARNING
If the supply cord is damaged, it must not be replaced and the appliance should be
scrapped.
