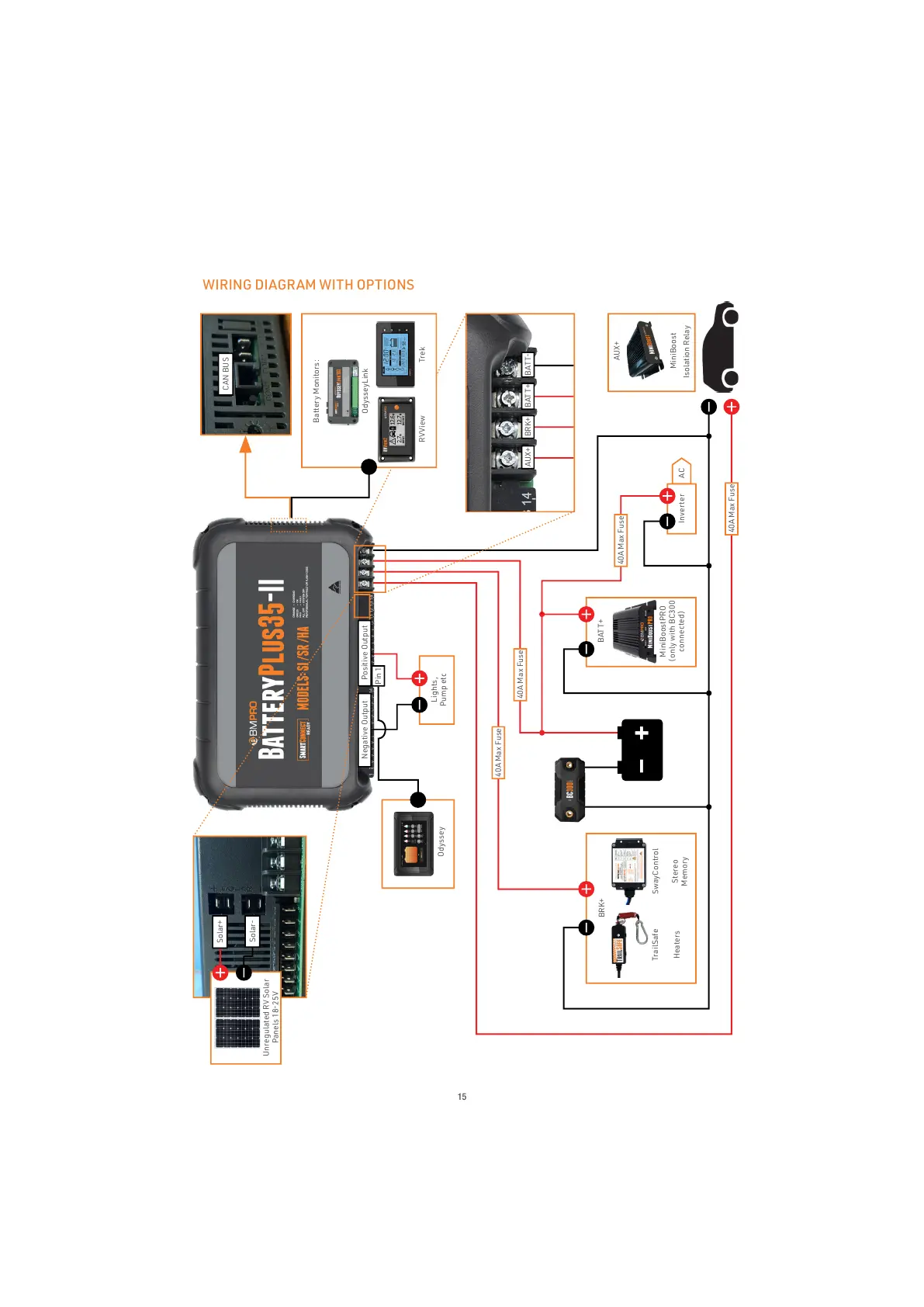

BMPRO BatteryPlus35-II - Wiring Diagram with Options

AUX+
BATT-
BATT+BRK+
Solar+
Solar-
Unregulated RV Solar
Panels 18-25V
CAN BUS
OdysseyLink
RVView Trek
Battery Monitors:
40A Max Fuse
40A Max Fuse
40A Max Fuse
SwayControl
TrailSafe
Heaters
Stereo
Memory
BRK+
MiniBoostPRO
(only with BC300
connected)
BATT+
MiniBoost
AUX+
AC
Inverter
40A Max Fuse
WIRING DIAGRAM WITH OPTIONS
Isolation Relay
Odyssey
Pin 1
Lights,
Pump etc
Negative Output Positive Output
15
