BP35-II-SI BP35-II-SR BP35-II-HA
Input Voltage Range
110-240V AC ± 10%, 50-60Hz (AU)
100 - 120V AC, 60Hz (US)
Input Surge < 40A (cold start)
Output Current 35A (Load + Battery Current)
Factory Set Voltage 13.65V (Float Voltage)
Output Ripple Voltage <150mV
Battery Current Limit max. 20A max. 20A max. 30A
Low Voltage Disconnect (Lead
Acid)
10.8V ± 0.2V
Battery Connect after LVD (Lead
Acid)
12.8V ± 0.2V
Low Voltage Disconnect
(LiFePO4)
12.0V ± 0.2V
Battery Connect after LVD
(LiFePO4)
13.8V ± 0.2V
Battery Drain <15mA (when in Storage Mode)

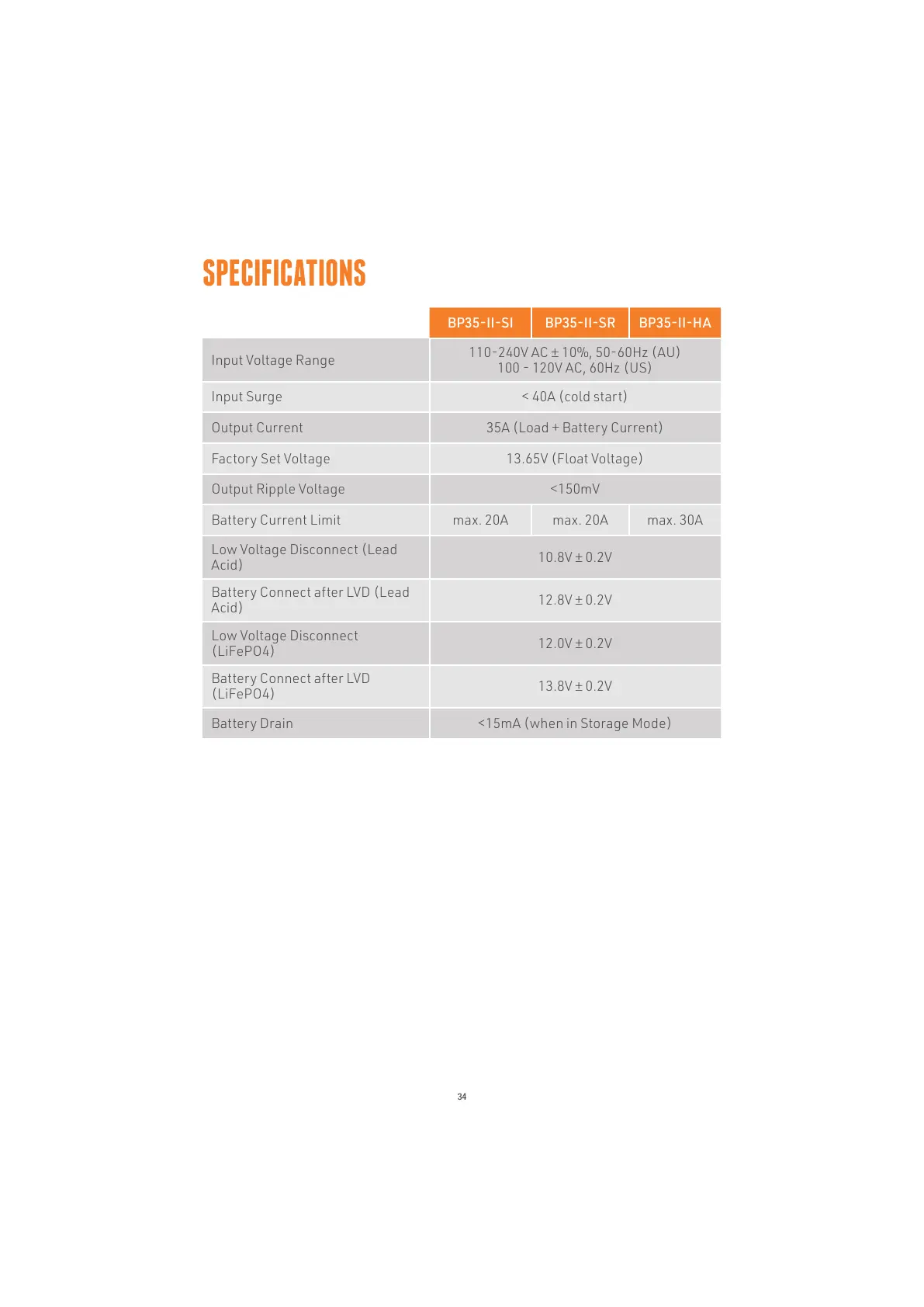

SPECIFICATIONS
34
