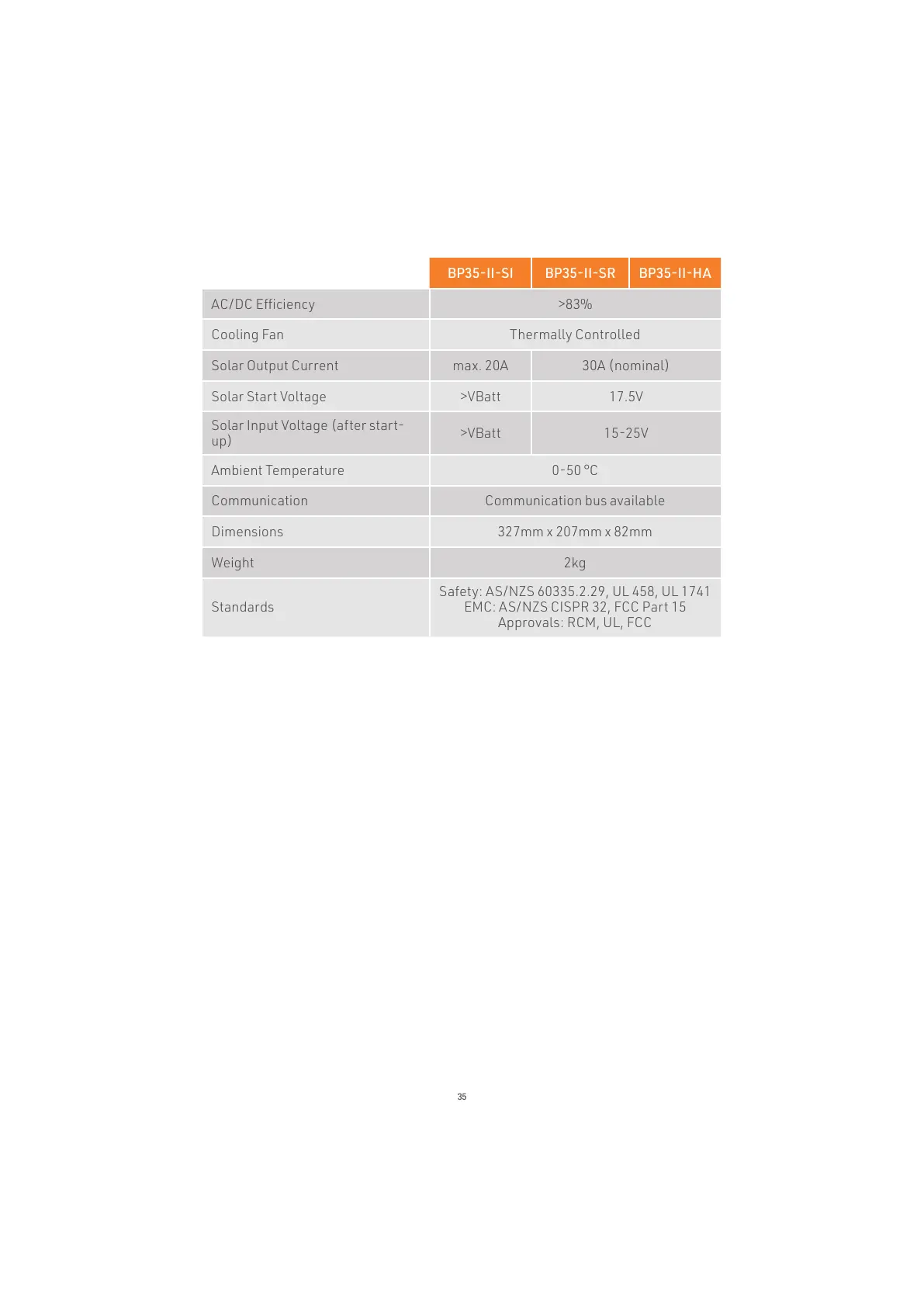

BP35-II-SI BP35-II-SR BP35-II-HA
AC/DC Efficiency >83%
Cooling Fan Thermally Controlled
Solar Output Current max. 20A 30A (nominal)
Solar Start Voltage >VBatt 17.5V
Solar Input Voltage (after start-
up)
>VBatt 15-25V
Ambient Temperature 0-50 °C
Communication Communication bus available
Dimensions 327mm x 207mm x 82mm
Weight 2kg
Standards
Safety: AS/NZS 60335.2.29, UL 458, UL 1741
EMC: AS/NZS CISPR 32, FCC Part 15
Approvals: RCM, UL, FCC
35
