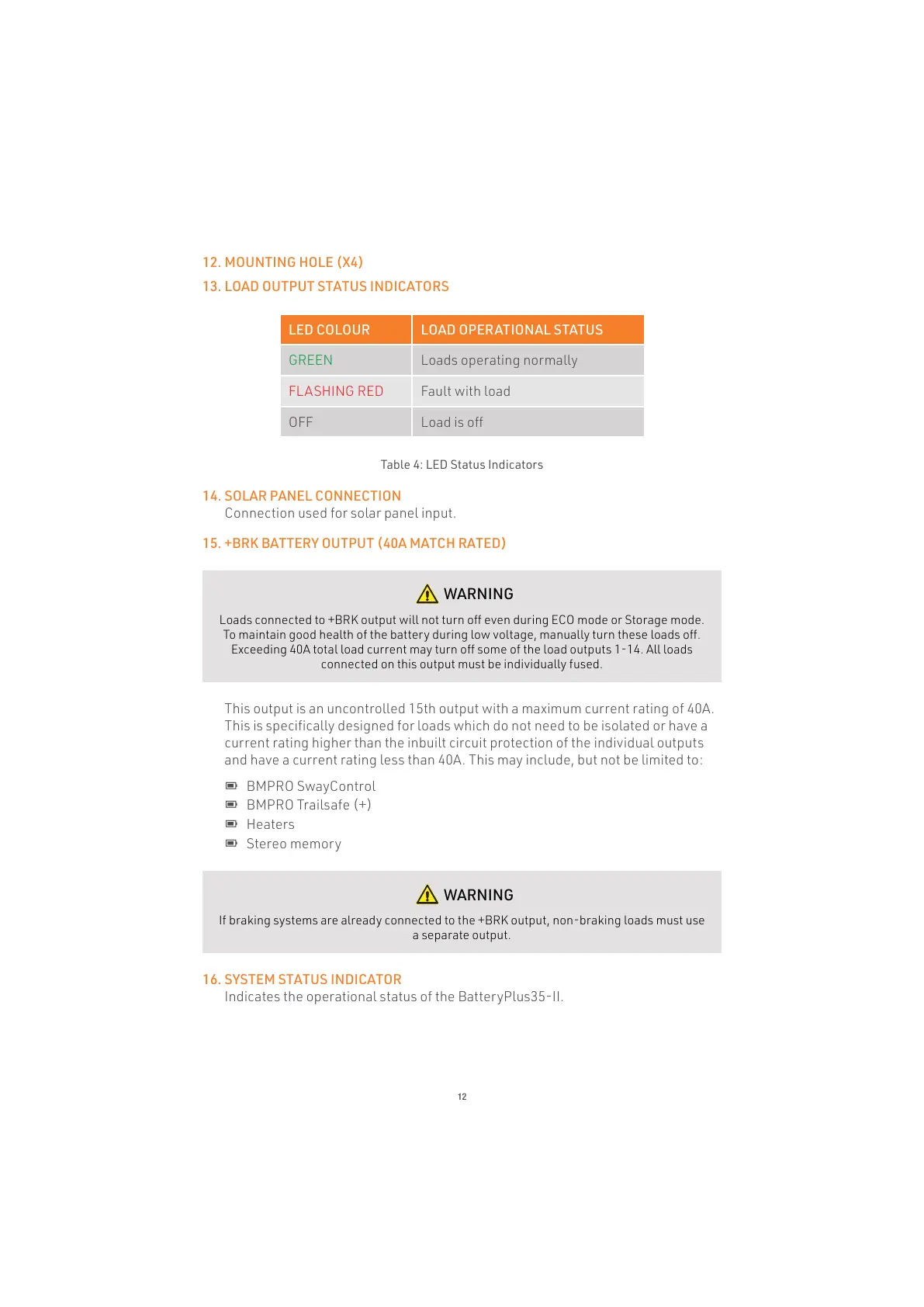

14. SOLAR PANEL CONNECTION
Connection used for solar panel input.
15. +BRK BATTERY OUTPUT (40A MATCH RATED)
16. SYSTEM STATUS INDICATOR
Indicates the operational status of the BatteryPlus35-II.
12. MOUNTING HOLE (X4)
13. LOAD OUTPUT STATUS INDICATORS
LED COLOUR LOAD OPERATIONAL STATUS
GREEN Loads operating normally
FLASHING RED Fault with load
OFF Load is off
Table 4: LED Status Indicators
This output is an uncontrolled 15th output with a maximum current rating of 40A.
This is specifically designed for loads which do not need to be isolated or have a
current rating higher than the inbuilt circuit protection of the individual outputs
and have a current rating less than 40A. This may include, but not be limited to:
9 BMPRO SwayControl
9 BMPRO Trailsafe (+)
9 Heaters
9 Stereo memory
WARNING
Loads connected to +BRK output will not turn off even during ECO mode or Storage mode.
To maintain good health of the battery during low voltage, manually turn these loads off.
Exceeding 40A total load current may turn off some of the load outputs 1-14. All loads
connected on this output must be individually fused.
WARNING
If braking systems are already connected to the +BRK output, non-braking loads must use
a separate output.
