CONTROLNODE

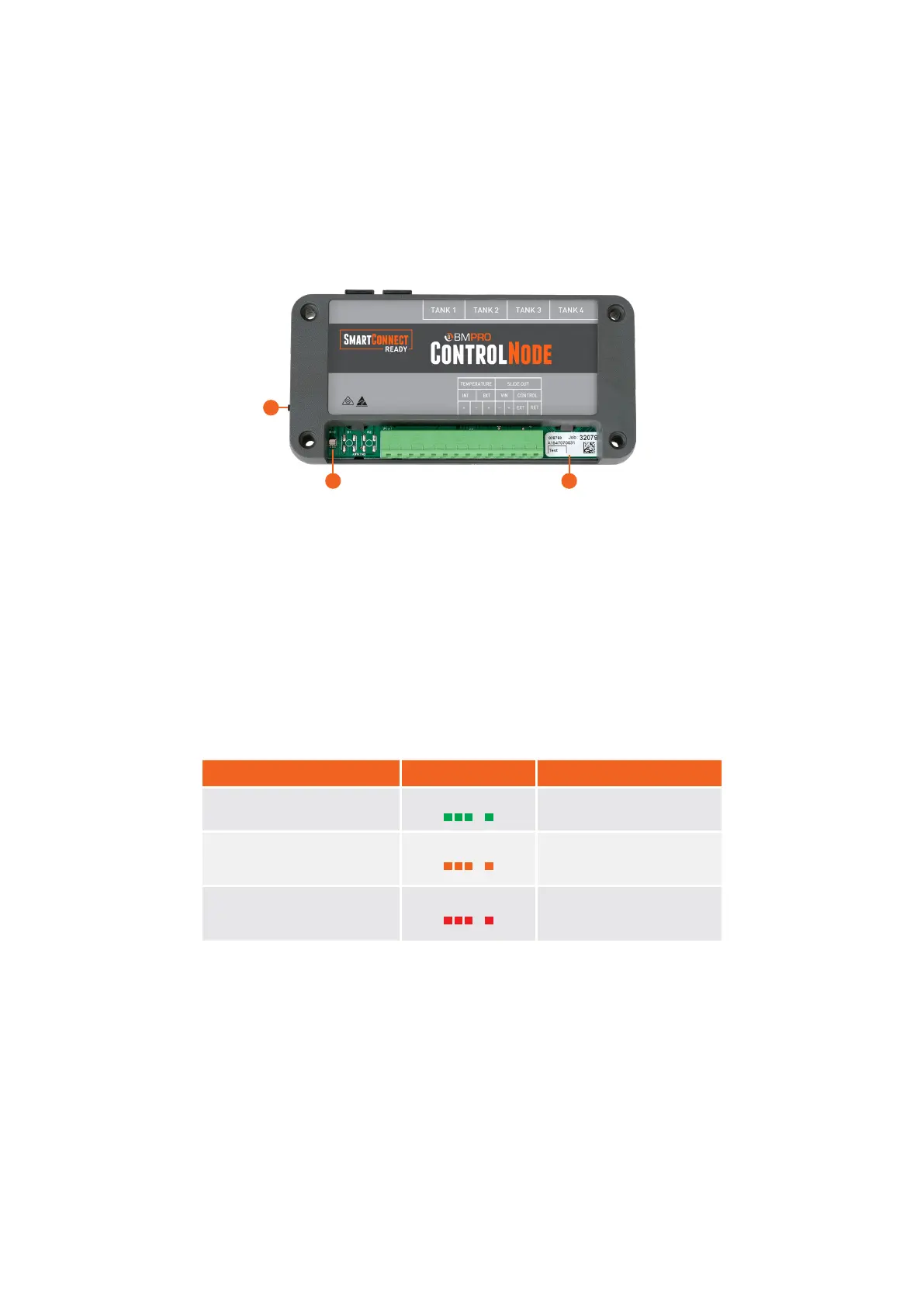

1. PAIRING BUTTON
Button to enable Bluetooth pairing between the ControlNode and the JHub App
on your own personal mobile device or JHub Tablet.
2. LED STATUS INDICATOR
Indicates the operational/pairing status of the ControlNode.
For more information, refer to ControlNode LED Flash Codes.
3. CONTROLNODE SERIAL NUMBER
Required to choose the correct device when pairing the ControlNode to the JHub
App on your own personal mobile device or JHub Tablet.
*After memory has been cleared, the ControlNode LED Status Indicator will flash green.
OPERATIONAL STATUS FLASHING STATUS DETAILS
ControlNode is ready to pair
Green flash 30 sec
ControlNode memory is full,
cannot pair to any new devices
Orange flash 1 sec
To pair to a new mobile device,
clear the memory of the
ControlNode
Clearing ControlNode memory*
Red flash 1 sec
Memory will only be cleared if
the user presses and holds the
Pairing Button for 10 seconds.
1
2 3
CONTROLNODE LED FLASH CODES
