BMPRO J35B-L User Manual

10

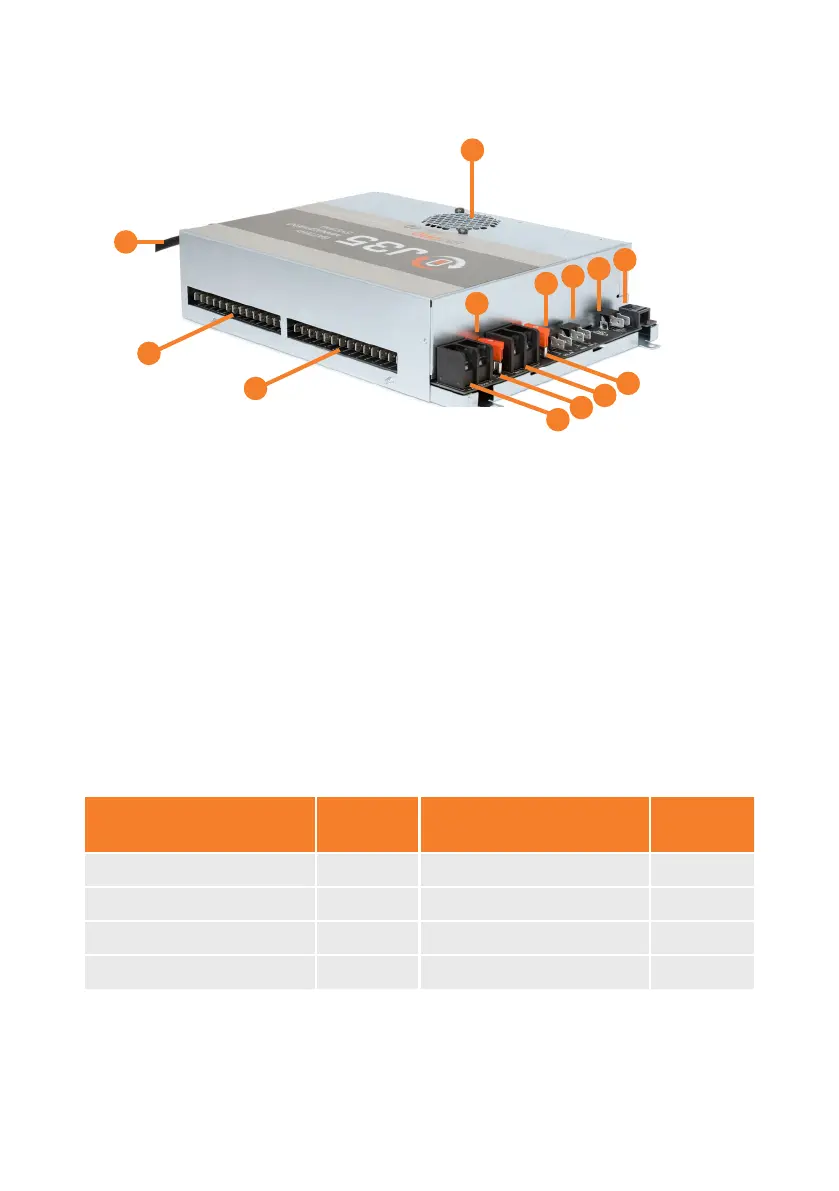

Figure 1: The J35
DESCRIPTION OF PARTS
e LOAD TERMINAL BLOCK – POSITIVE CONNECTION
Positive wire connection point for the caravan’s 12V loads.
To control loads from the JHub App, each load must be connected to the correct
terminal. Terminals are labeled according to their designated load output.
w LOAD TERMINAL BLOCK – COMMON NEGATIVE CONNECTION
Negative wire connection point for the caravan’s 12V loads.
J35A TERMINAL/LOAD
CURRENT
RATING
J35A TERMINAL/LOAD
CURRENT
RATING
1-Stereo 15A 5-Lights/Spare 10A
2-Spare 15A 6-Lights/Spare 10A
3-Pump 10A 7-Lights/Spare 10A
4-HWS 10A
Table 3: J35A designated terminal-load outputs for the load terminal block-positive connection
q MAINS CABLE
The J35 is pre-cabled with a permanent mains power supply cord. The AC mains
input is protected by a quick acting, high breaking capacity type fuse (rated
250V, 10A).
10
5
12
11
13
6
7
8
9
1
4
3
2
J35
