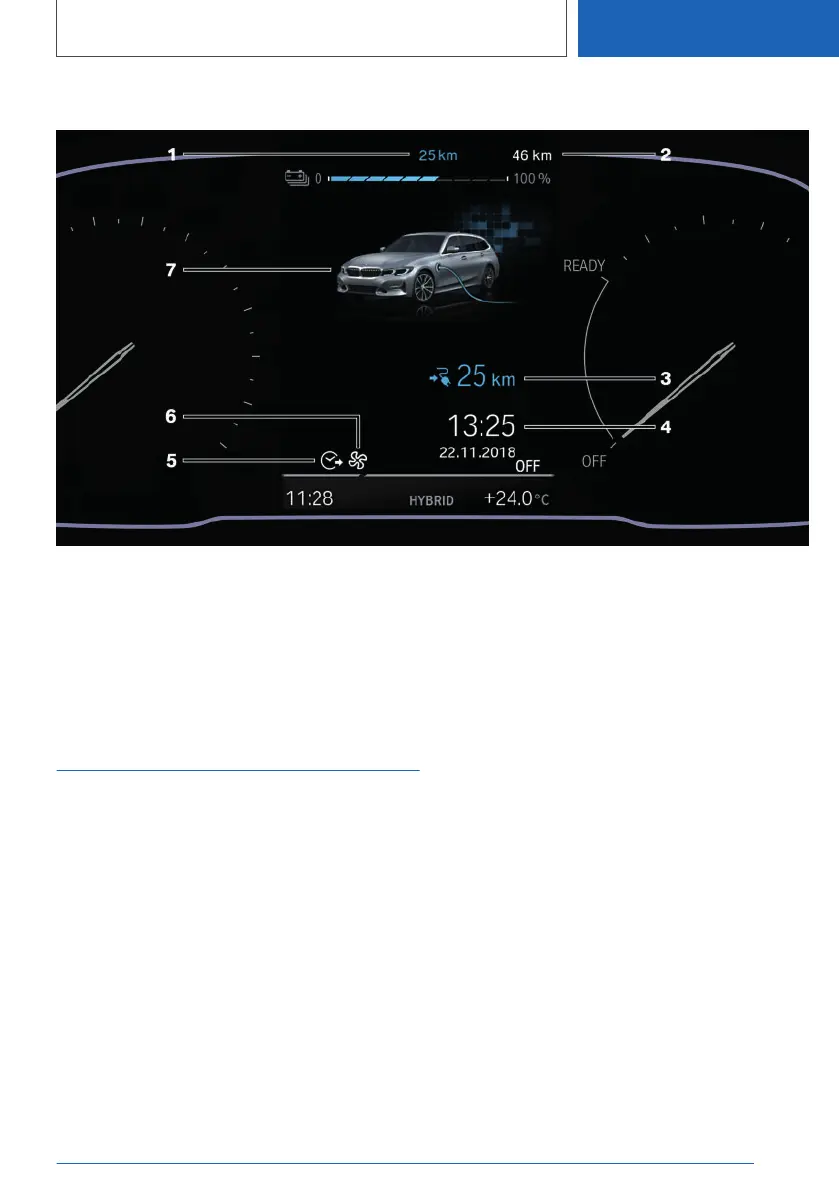

Instrument cluster without extended functionality: Overview
1 Range for electric driving 362
2 Maximum electrical range 362
3 Range for electric driving 362
4 Departure time for timer 363
5 Departure time timer 363
6 Standing air conditioning 363
7 Charge state with charging cable 362
Display of the hybrid
system
Displays in the instrument
cluster
General
The following functions of the hybrid system are
shown:
▷ Charge state indicator the high-voltage bat‐
tery.
▷ Drive-ready state: READY.
▷ Electric driving: ELECTRIC.
▷ Electric driving: ELECTRIC INDIVIDUAL
▷ Hybrid mode: HYBRID STANDARD.
▷ Hybrid mode: HYBRID ECO PRO.
▷ BATTERY CONTROL.
▷ XTRABOOST.
What is displayed depends on the operating
mode of the system.
Charge state indicator of the high-
voltage battery
Principle
Displays the current charge state of the high-
voltage battery in percent.
