E88 Complete Vehicle

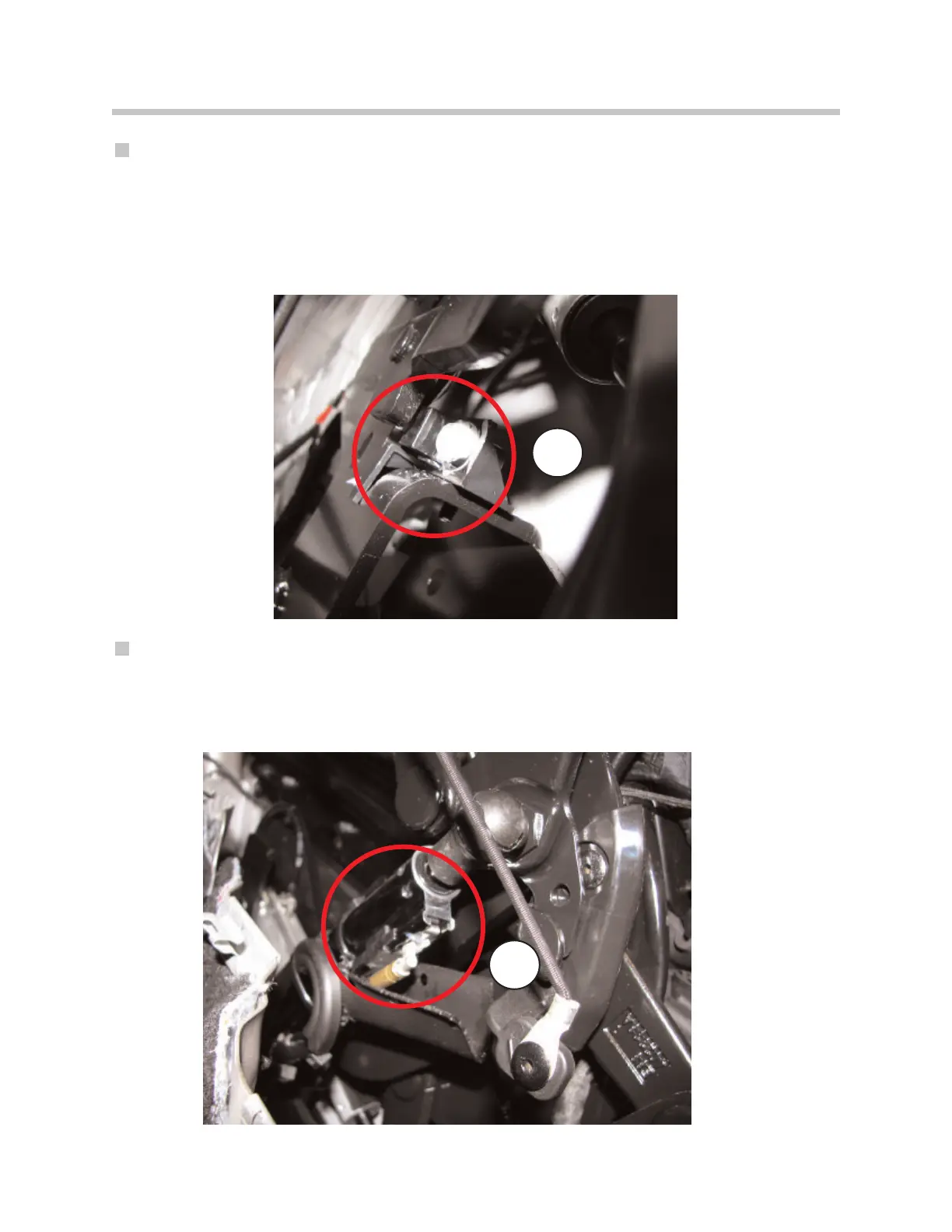

Hall Sensor #4
Measures the Roll Bar in its most vertical position referred to as “Clamping Bar
Positioned” in the current diagnostic equipment software version. It is located
right side bracket of top linkage/mechanism (mid bracket).
Hall Sensor #5
Measures the position of the top extending piston actuator which is labeled as “Roll Bar
Unclamped” in the diagnostic equipment. Located on the right side top unfolding piston
actuator under a plastic cover.
4
5
