E85 Information/Communication
- 17 -
Operation of the central information display
When folded out, the position is between 85-108 degrees. The
position last stored (last function memory position) is raised. The
display can now be finely adjusted in steps (1 step =
1.2 degrees) using the left-hand switch. The signal from the
switch is sent directly to the stepper motor and is not transferred
via the K-bus.
Manual fine adjustment of the display is also possible in a range
from 85-108 degrees. In an area below this range
(< 85 degrees), the CID is folded in automatically as it can no
longer be read effectively in this position.
The right-hand switch can be used to fold in the display.
Navigation directions are not interrupted if the display is folded
in while the navigation system is active.
When terminal R is switched off, the CID is always folded in and
the last position stored. The display can be switched off by
means of a button in the main menu.

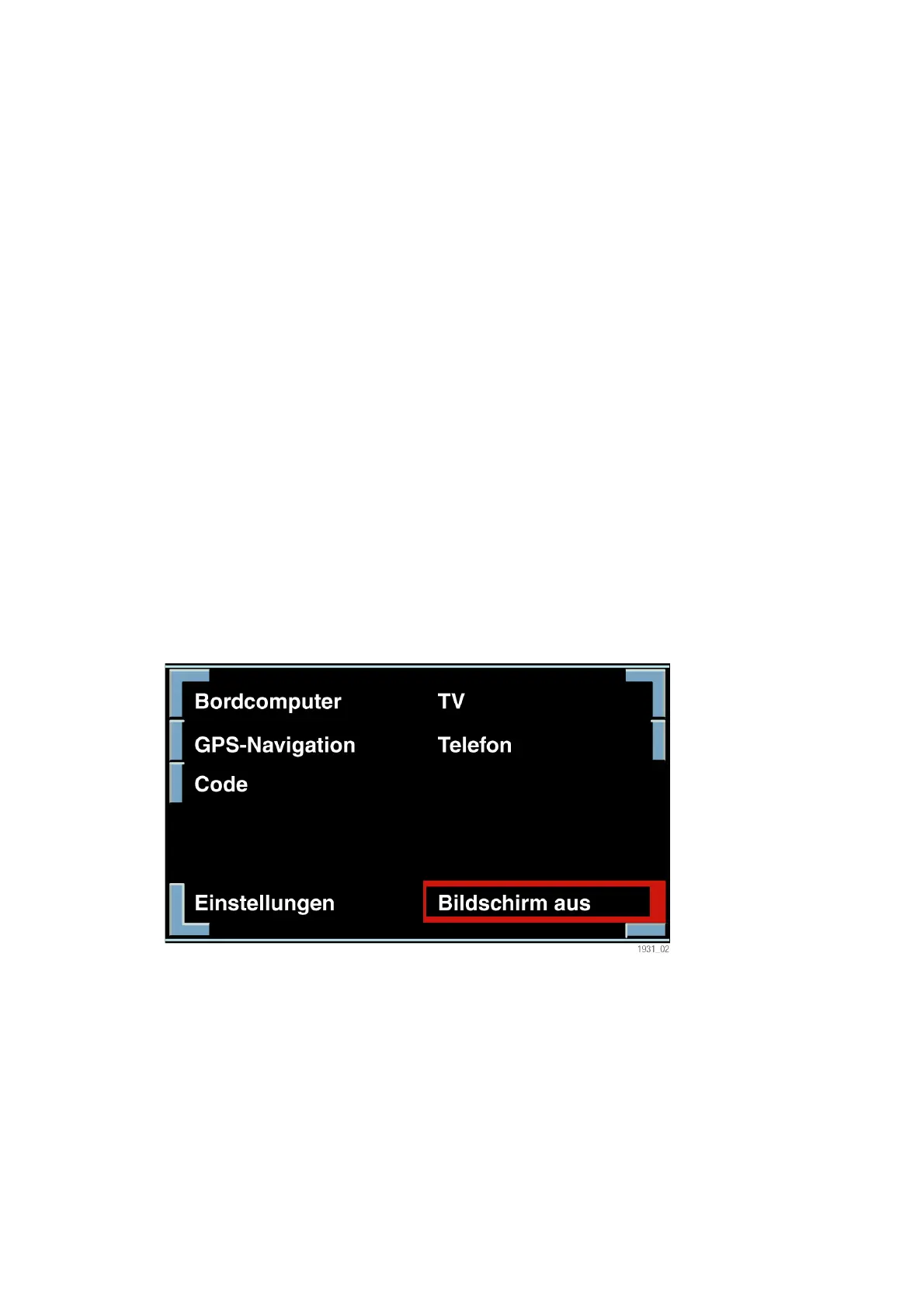

Fig. 14: Switching off the display
KT-10535
