E85 Information/Communication
- 83 -
Base plate
The base plate serves the purpose of accepting the snap-in
adapter and therefore the Bluetooth mobile phone.

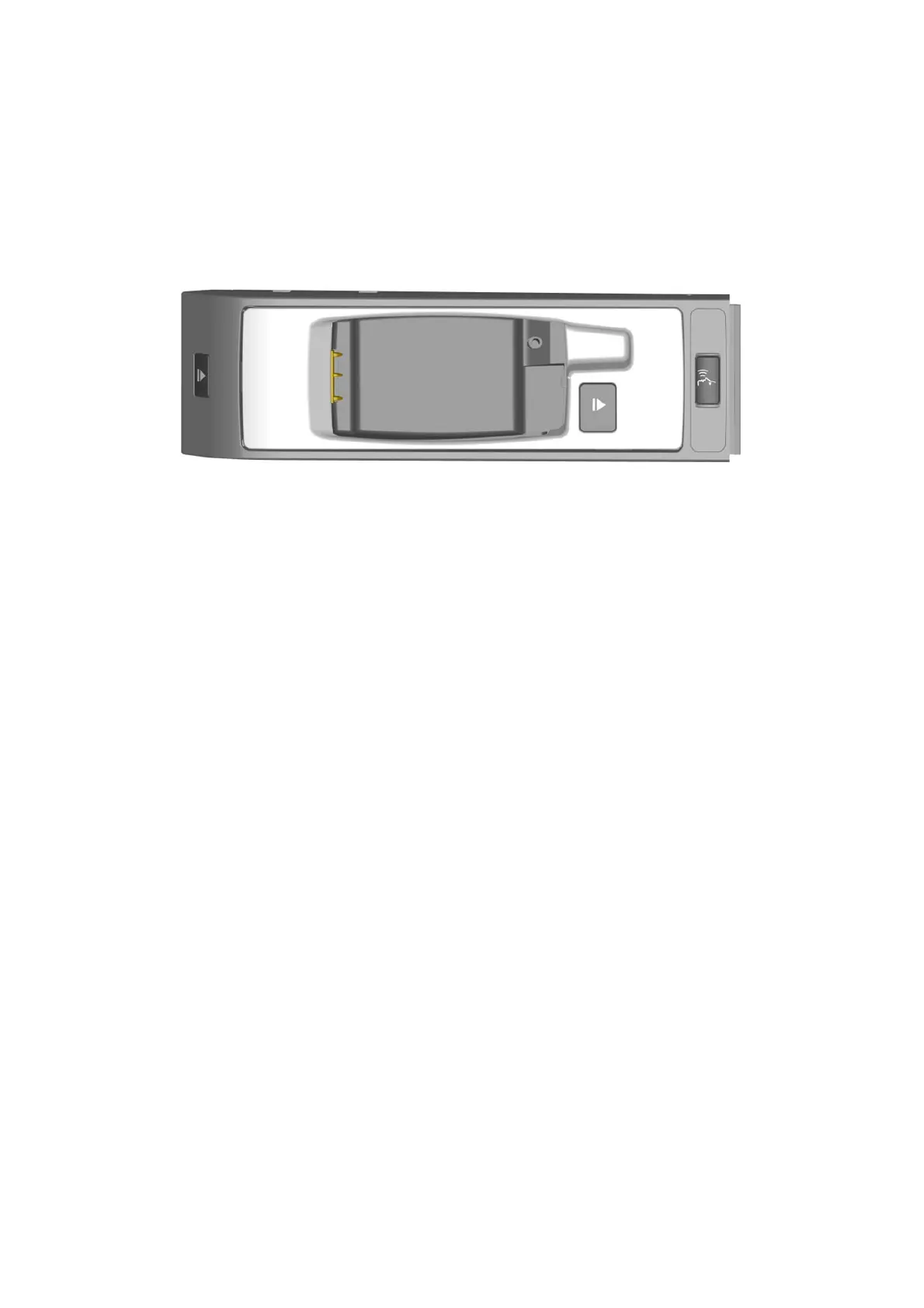

Fig. 56: Base plate with snap-in adapter
The base plate establishes the connection to the ULF and to the
vehicle wiring harness.
The charging module is integrated in the snap-in adapter. The
snap-in adapter is powered by the ULF control unit as soon as it
is connected with the base plate. The charger is active and
adapted to the corresponding Bluetooth mobile phone.
The Bluetooth mobile phone is charged only when the following
parameters in the charging module apply:
- Snap-in adapter fitted in base plate
- Telephone inserted in snap-in adapter
- Terminal R or after-run time active
- No overvoltage > 16 V
- No undervoltage > 9 V
KT-10789
