F97/F98�Complete�Vehicle
4.�Powertrain
27

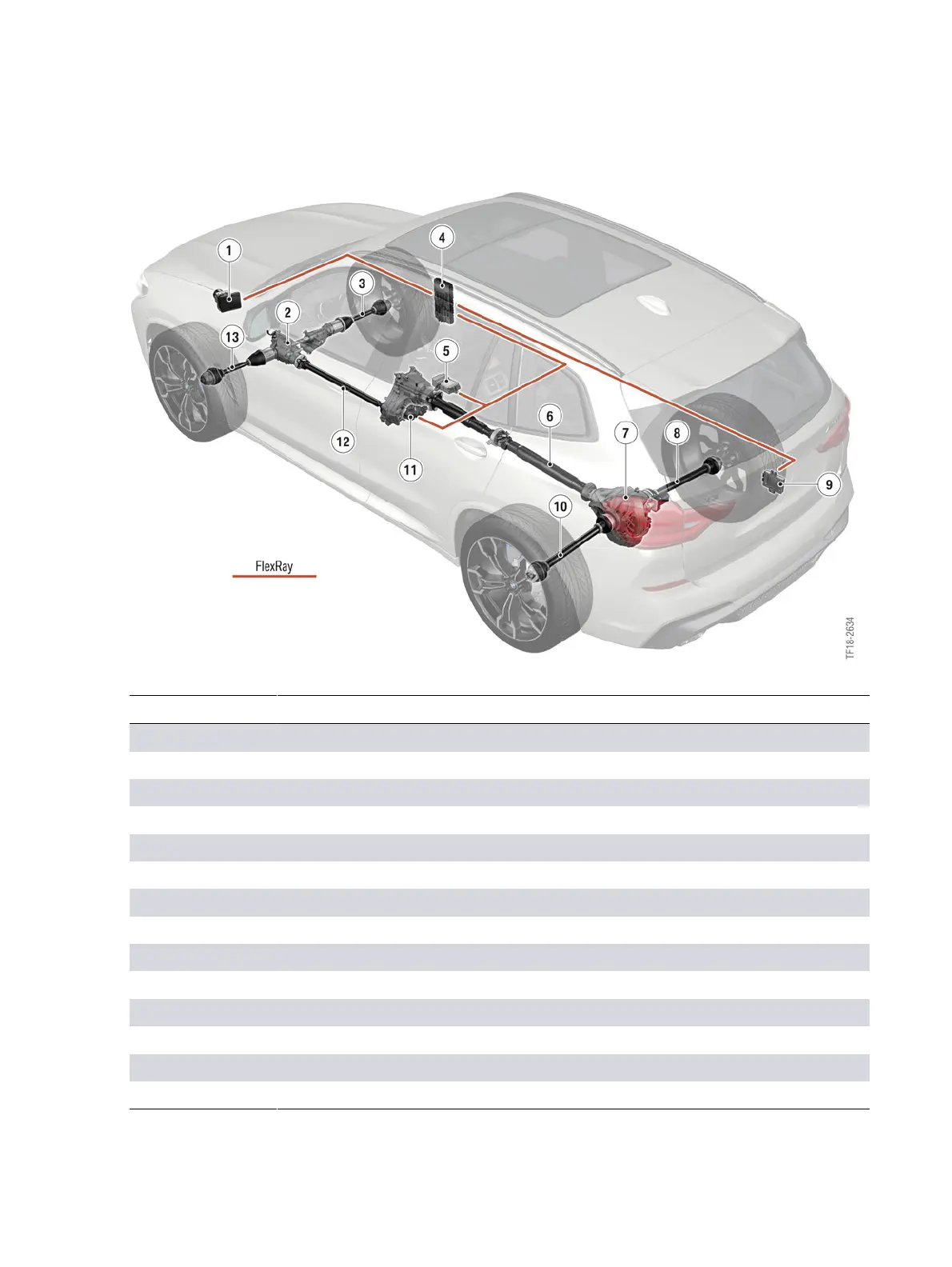

F97,�system�overview,�M�xDrive
Index Explanation
1 M�Dynamic�Stability�Control�(M�DSC)
2 Front�axle�differential
3 Front�output�shafts,�right
4 Body�Domain�Controller�(BDC)
5 Advanced�Crash�Safety�Module�(ACSM)
6 Prop�shaft
7 M�rear�axle�differential�lock
8 Rear�output�shafts,�right
9 Control�unit,�regulated�M�rear�axle�differential�lock�(M�GHAS)
10 Rear�output�shafts,�left
11 M�transfer�box�(M�VTG)
12 Front�propeller�shaft
13 Front�output�shafts,�left
FlexRay FlexRay�bus
