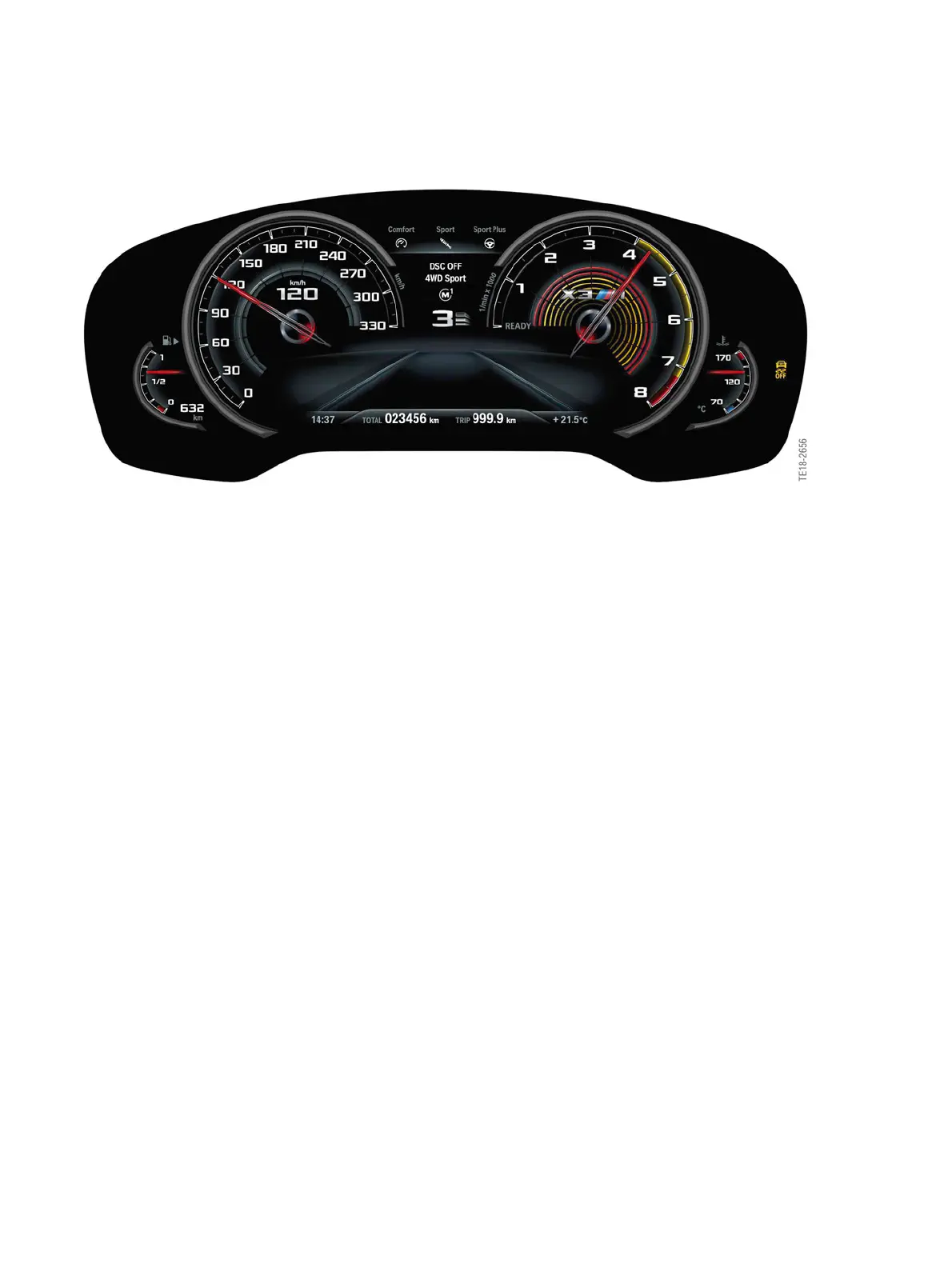

F97,�instrument�cluster
M-specific�displays:
• M�Dynamic�Mode�(MDM)�symbol�in�place�of�the�DTC
• Additional�digital�speed�indicator
• Display�of�all-wheel-drive�mode
• M1�=�M�Setup�1
• M2�=�M�Setup�2
• Display�of�gear
• Display�of�Drivelogic�(bar�symbol�such�as�a�button)
• Display�of�system�status:�Engine�dynamics,�damper�control�and�M�Servotronic
• Shiftlight�function�inside�the�rev�counter�(only�active�when�not�activated�on�the�HUD)
• Temperature-dependent,�variable�engine-revolutions�advance-warning�field
• Yellow�indicator�light�to�indicate�standard�drive.
In�the�instrument�cluster,�the�current�configuration�of�the�engine�dynamics,�damper�control�and
Servotronic�systems�is�shown�in�the�upper�area�between�the�speed�indicator�and�the�engine�speed
display.�This�function�can�be�activated�under�Settings�in�the�Configuration�menu�display.
The�confirmation�of�the�M�configuration�for�M�DSC,�engine�dynamics,�transmission,�EDC�and�M
Servotronic�is�also�issued�centrally�in�the�instrument�cluster.
For�setting/adjustment�work�in�the�engine�dynamics,�EDC�and�M�Servotronic�systems�the�response�of
the�button�activation�is�also�effected�as�a�list�in�the�instrument�cluster.
6.2.3.�M�Head‐Up�Display
The�multi-color�head-up�display�available�as�option�SA�610�can�switch�to�the�M-specific�display.
The�following�information/parameters�can�be�shown:
