G15�General�Vehicle�Electronics
4.�Voltage�Supply
43
A�relay�for�terminal�30B�is�installed�in�the�front�right�power�distribution�box.
The�connected�consumers�are�supplied�with�terminal�30,�terminal�30B�and�terminal�15N.
Terminal�15N�is�controlled�by�the�luggage�compartment�power�distribution�box.
Front�left

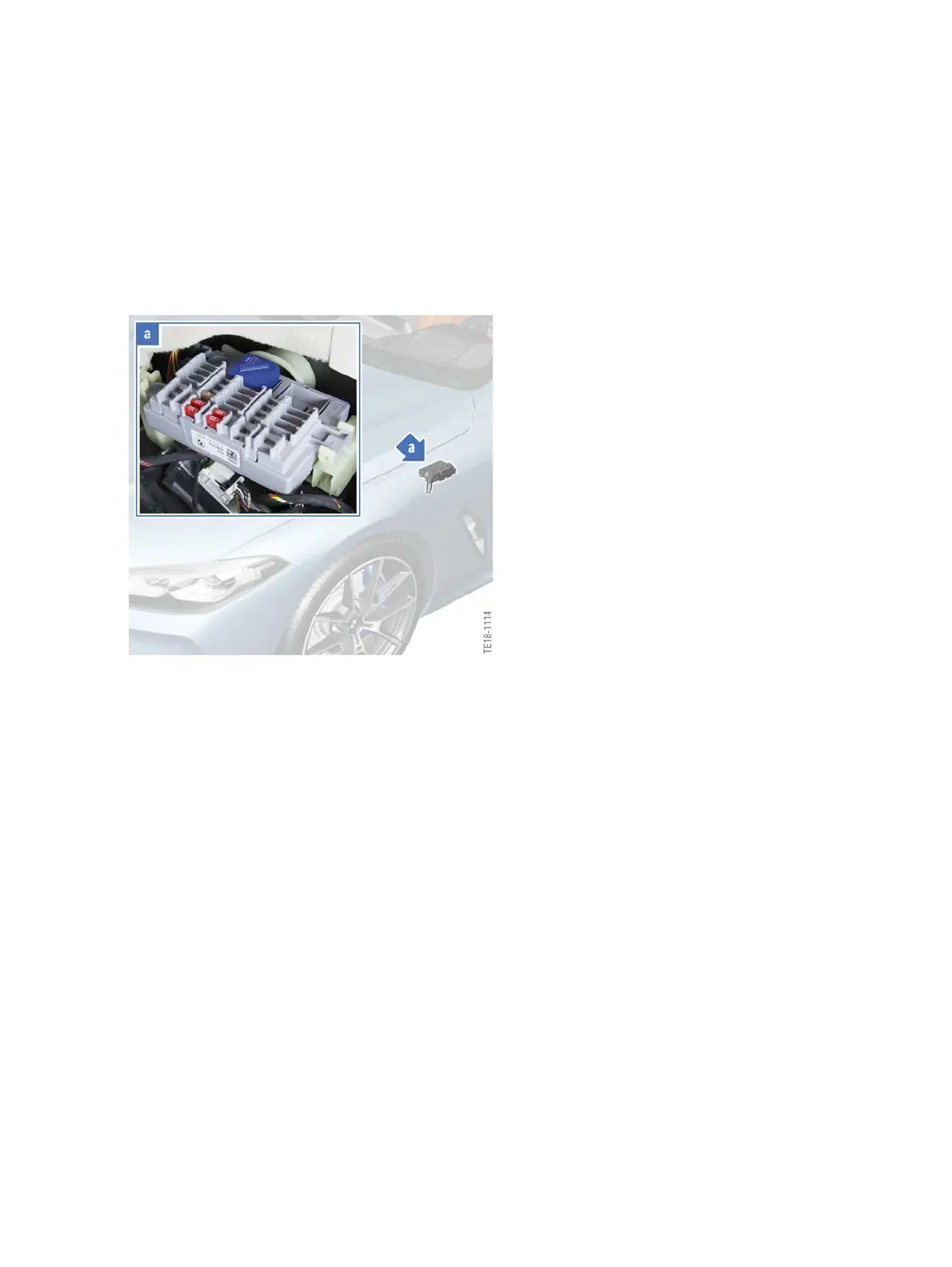

G15�power�distribution�box,�front�left
A�relay�for�terminal�30B�is�installed�in�the�front�left�power�distribution�box.
The�connected�consumers�are�supplied�with�terminal�30�and�terminal�30B.
