G15�General�Vehicle�Electronics
6.�Exterior�Lights
51
Index Explanation
1 Frontal�Light�Electronics�Left�(FLEL)
2 Left�fog�light
3 Right�fog�light
4 Frontal�Light�Electronics�Right�(FLER)
5 Ride�height�sensor,�front�right
6 Fuses�in�the�power�distribution�box,�front�right
7 Body�Domain�Controller�(BDC)
8 Fuse�in�the�Body�Domain�Controller
9 Turn�indicator�in�exterior�rearview�mirror,�right
10 Ride�height�sensor,�rear�right
11 Fuse�for�rear�right�power�distribution�box
12 Ride-height�sensor,�rear�left
13 Vertical�Dynamic�Platform�(VDP)
14 Turn�indicator�in�exterior�rearview�mirror,�left
15 Light�operating�unit
16 Hazard�warning�switch/Intelligent�Safety�button
17 Steering�column�switch�cluster�(SZL)
18 Instrument�cluster�(KOMBI)
19 Rain-light-solar-condensation�sensor�(RLSBS)
20 Ride�height�sensor,�front�right
6.1.3.�BMW�laser�light

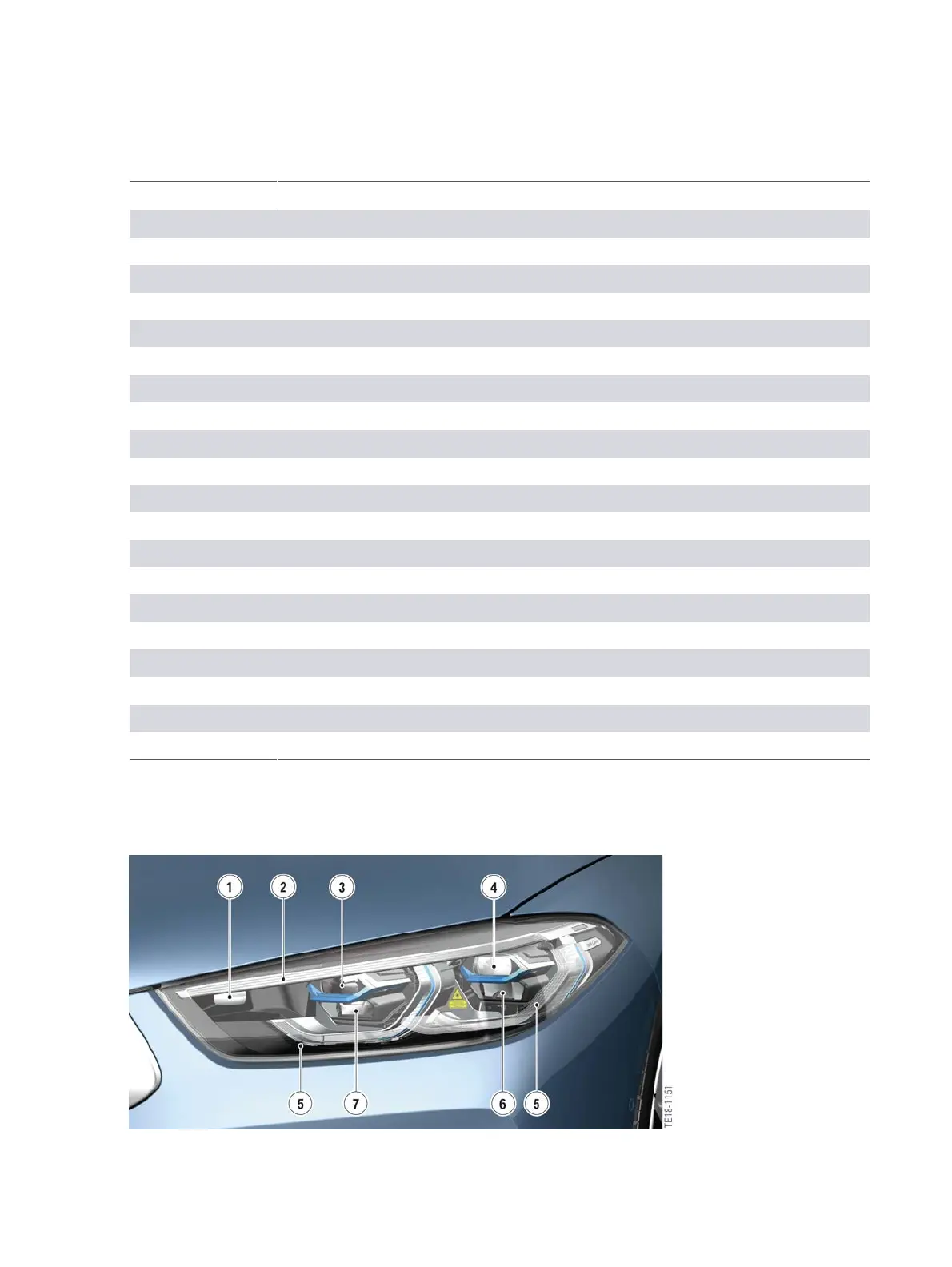

G15�BMW�laser�light
