G15�General�Vehicle�Electronics
7.�Wash/Wipe�System
55

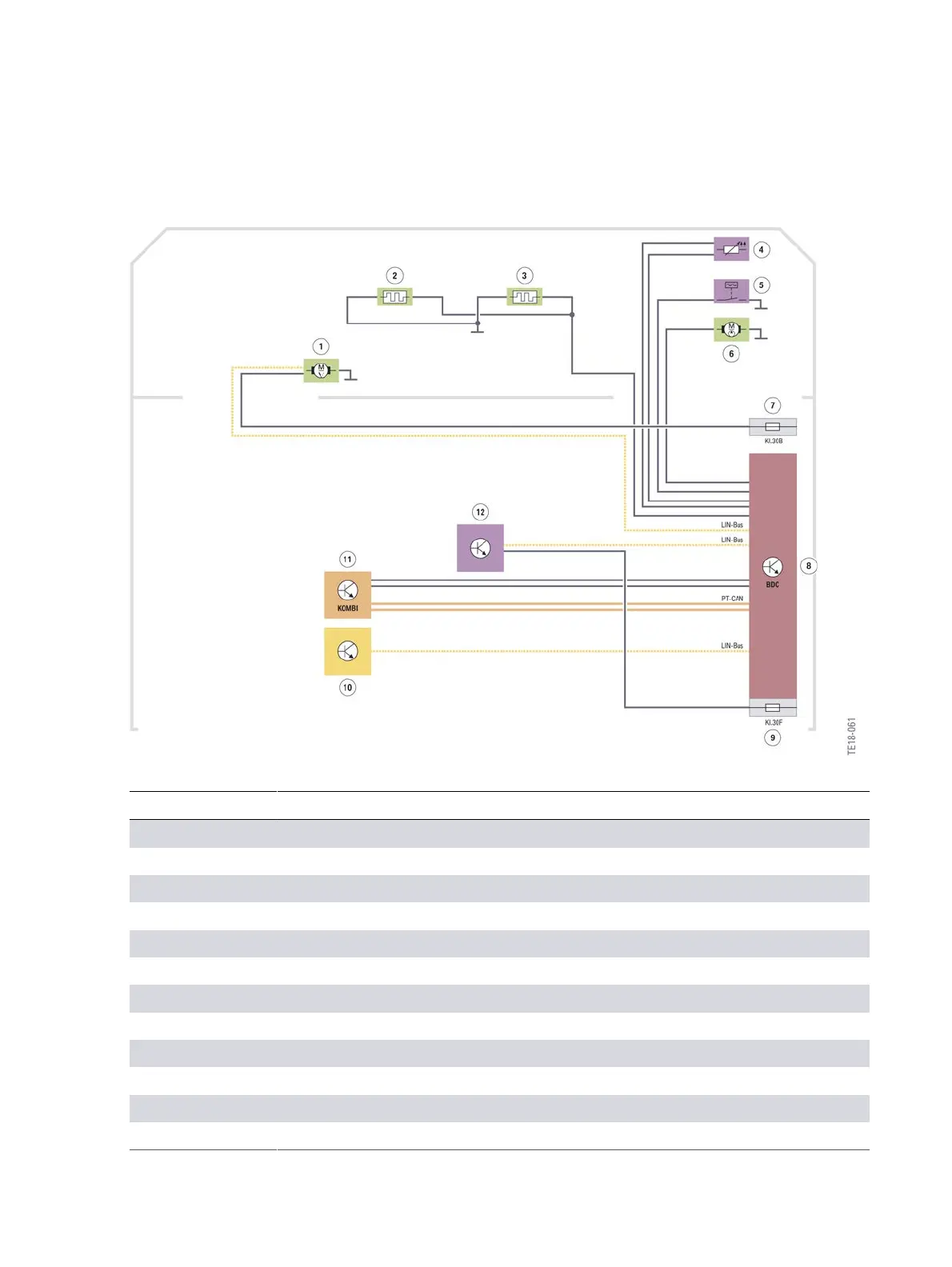

7.1.�System�wiring�diagram
G15�wash/wipe�system
Index Explanation
1 Wiper�motor
2 Washer�jet�heating,�left
3 Washer�jet�heating,�right
4 Outside�temperature�sensor
5 Washer�fluid�level�switch
6 Window�washer�pump
7 Fuse�for�front�right�power�distribution�box
8 Body�Domain�Controller�(BDC)
9 Fuse,�Body�Domain�Controller
10 Steering�column�switch�cluster�(SZL)
11 Instrument�cluster�(KOMBI)
12 Rain-light-solar-condensation�sensor�(RLSBS)
