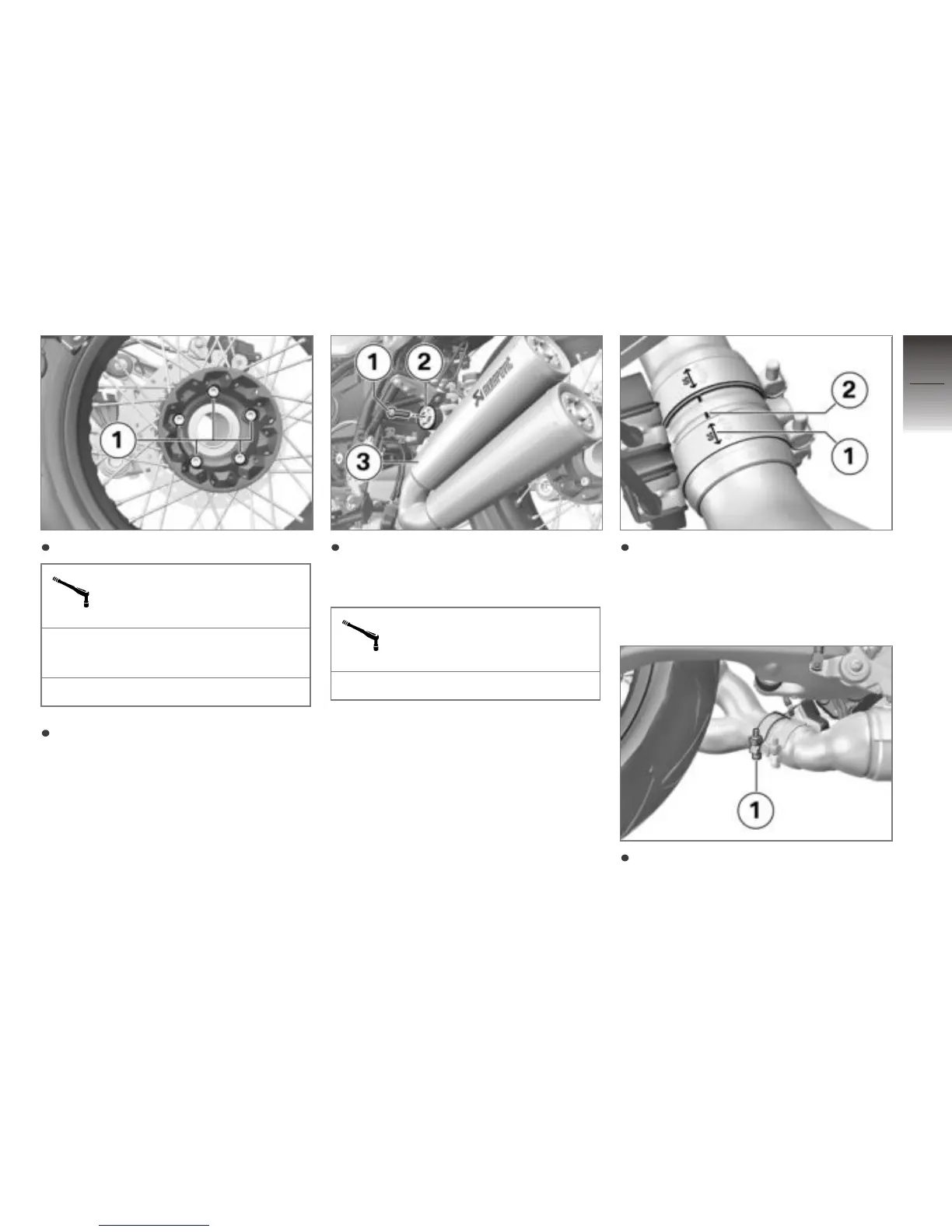

Install screws 1.
Rear wheel on wheel
carrier
Tightening sequence: Diago-
nally
44 lb/ft (60 Nm)
Mount muffler on pipe on ex-
haust flap.
Align muffler 3, lay on fas-
tening washer 2 and install
screw 1.
Muffler on passenger
frame
7 lb/ft (10 Nm)
Slide clip as far forward as pos-
sible and align so that clamp
marking (GS) 1 faces mark-
ing 2.
Tighten screw 1.
