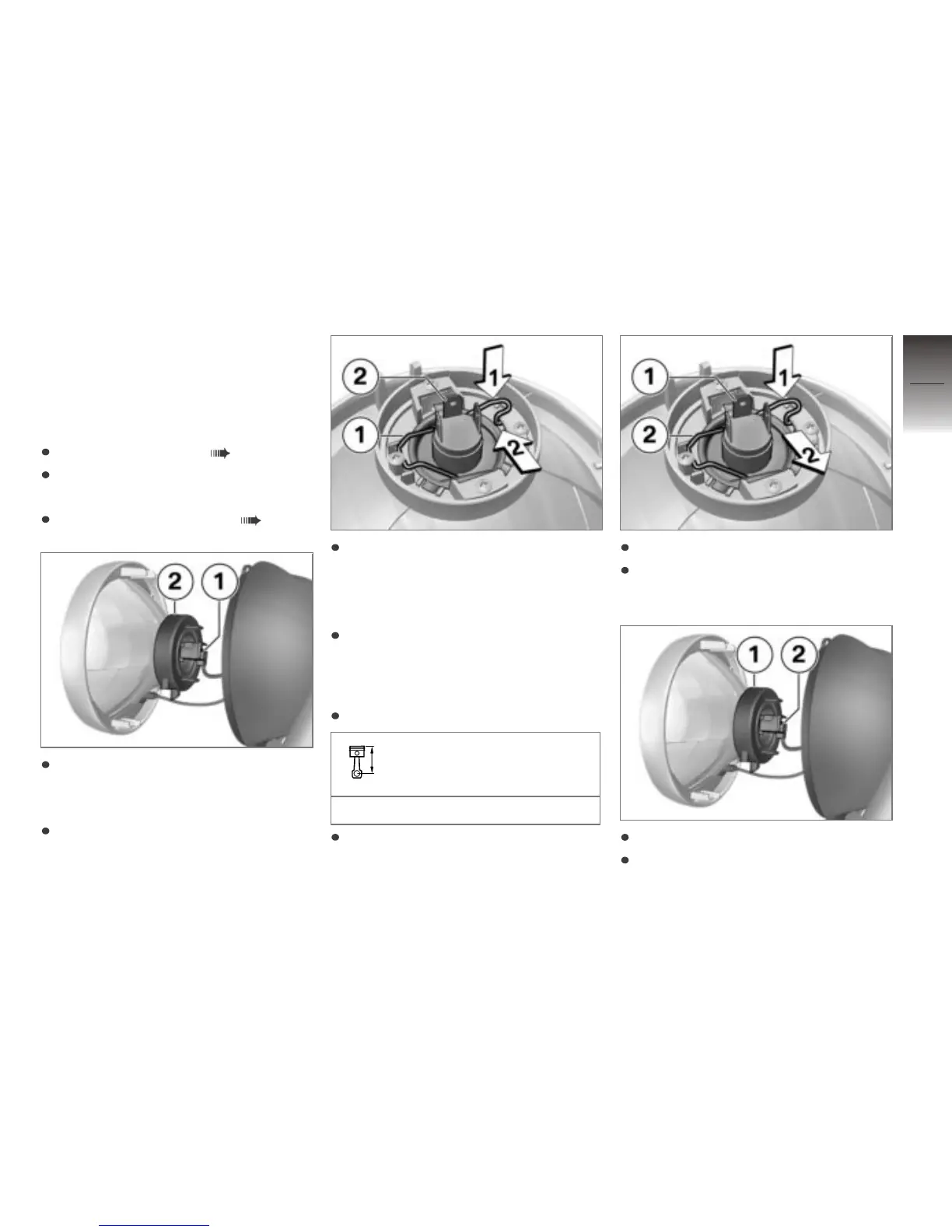

Bulbs
Replacing bulbs for
dipped and main-beam
headlights
Switch off ignition ( 30).
Make sure ground is level and
firm and park motorcycle.
Remove light housing ( 86).
Disconnect connector 1 for
low-beam and high-beam
headlight.
Pull rubber seal 2 off light
housing.
Press wire spring 1 downward
and swivel to side out of catch,
then fold open wire spring up-
ward.
Carefully remove bulb 2 for
low-beam and high-beam
headlight from light housing.
Replace defective bulb.
Bulb for low-beam and
high-beam headlight
H4 / 12 V / 60/55 W
To protect the glass against
soiling, only grasp the bulb by
the base.
Mount bulb 1 in light housing.
Fold wire spring 2 closed and
swivel into catch.
Mount rubber cap 1.
Connect connector 2 for low-
beam and high-beam headlight.
