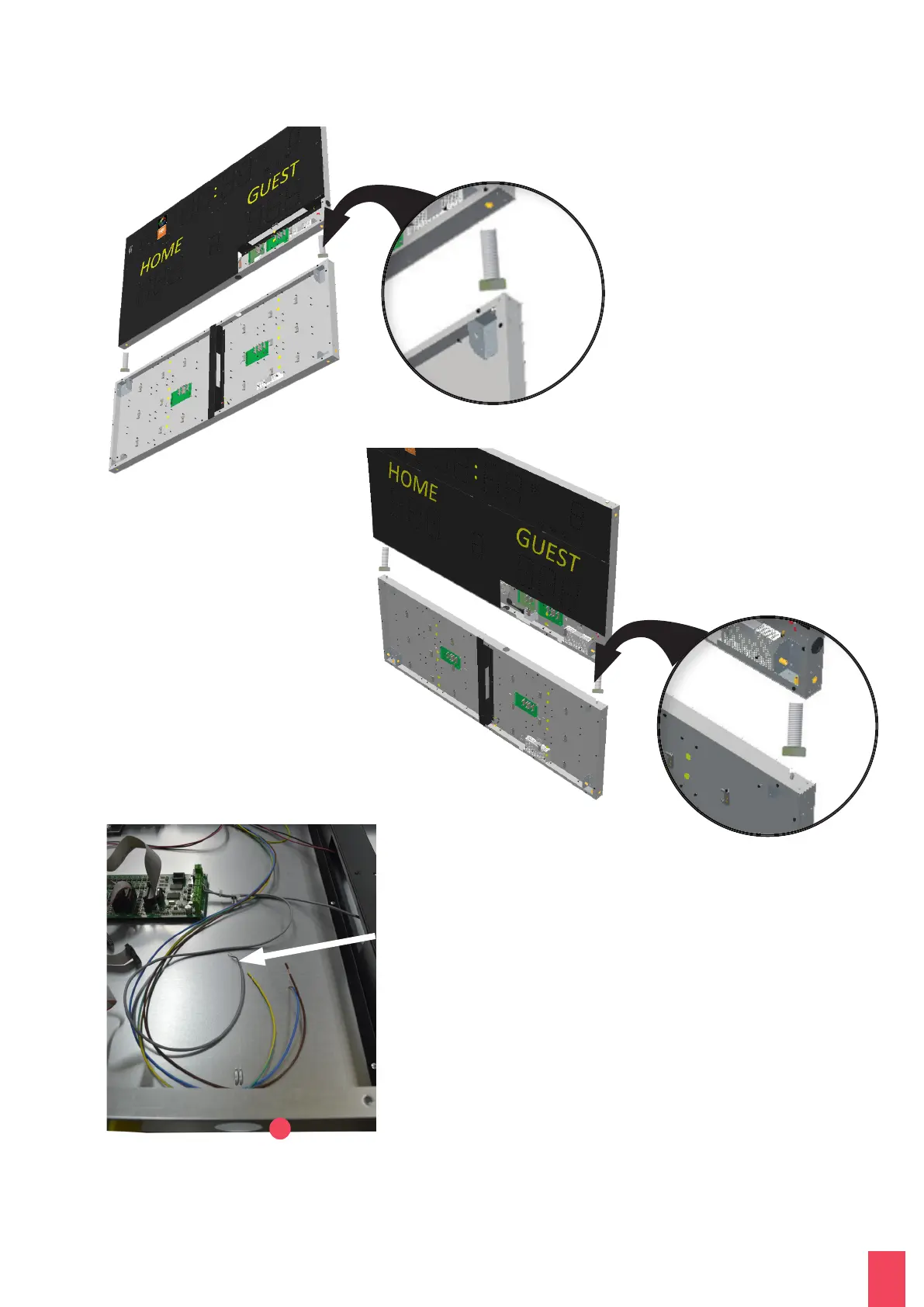

3) Attach the additional module to the central scoreboard (8015, 8020 or 8025) with the 2 supplied M10 screws
andfeed the power and communication cables of the additional module (A) to the main scoreboard :
Power supply: yellow/green - blue - brown
Communication: grey cable with 1 brown
wire + 1 white wire
A
