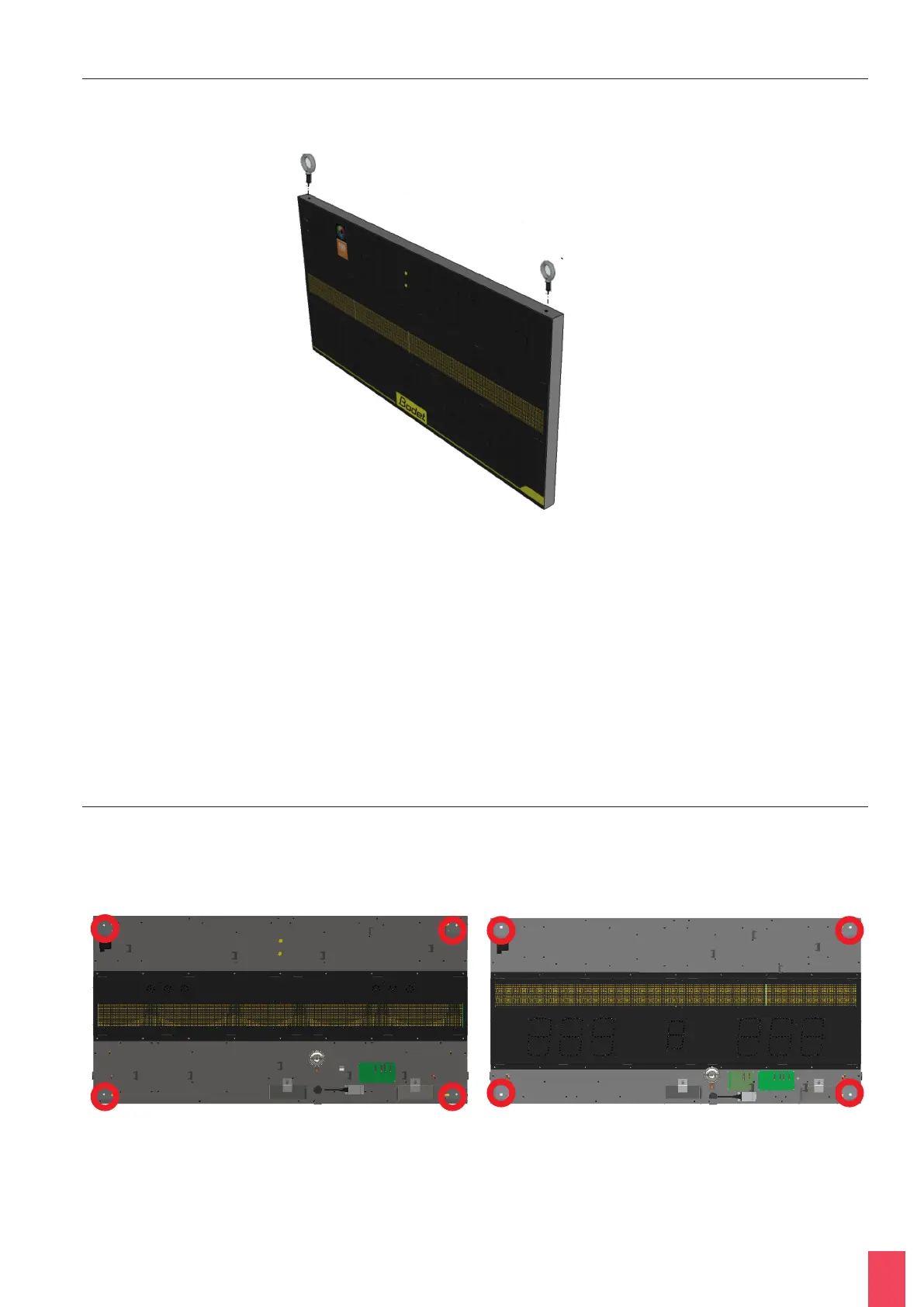

5.3 - Suspended mount (ref: 916 426)
Suspended mounting requires a lifting solution, which must be determined and installed by the client.
1) On the ground, attach the lifting eye bolts (ref: 916 426) to the top of the scoreboard. Centre to centre dimensions
between eye bolts: 1906 mm
2) Attach the two quick links to the lifting eye bolts.
3) Operate the winches to mount the board to the desired height.
Note: it is possible to lift the scoreboard with only one central hooking point. Install one lifting eye bolt and
a quick link
Activate the hoist to lift the scoreboard.
5.4 Mounting from the back (Ref.: standard scoreboard reference)
This method consists on mounting the scoreboard against a metallic structure.
1) Remove the cover on each corner of the scoreboard in order to access the mounting holes:
80xx scoreboards
8Txx or 8NTxx scoreboards
(Only one electronic card for
the 8T120 SOLO)
