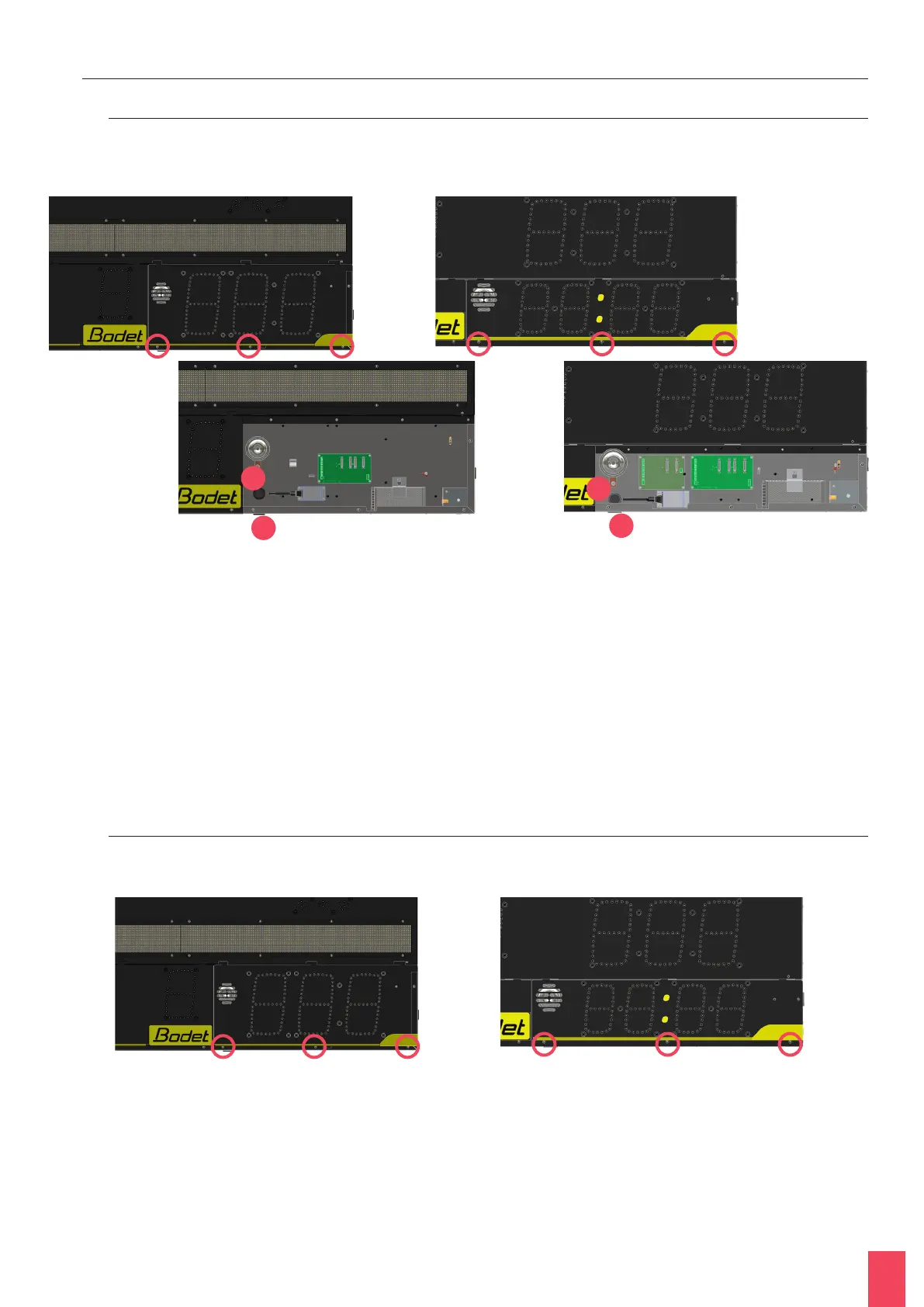

5.5 Electrical connections
5.5.1. HF installation
1) Remove the lower right hatch by the 3 screws («Guest score» hatch or «Guest penalties» hatch according to
the scoreboard model):
2) Feed the power cable through the grommet:
- feeding through the back (A)
- feeding through the bottom (B)
3) Connect the cable to the electrical main (100-240VAC power supply).
4) Put the hatch back in place.
The parameter setting of the HF communication is done on the Scorepad keyboard. Refer to the keyboard manu-
al.
5.5.2. Wired installation
1) Remove the 3 lower screws («Guest score» hatch or «Guest penalties» hatch according to the scoreboard
model):
2) Swing the hatch upward.
8Txx or 8NTxx scoreboards
(Only one electronic card for
the 8T120 SOLO)
80xx scoreboards
A
B
B
A
8Txx or 8NTxx scoreboards
(Only one electronic card for
the 8T120 SOLO)
80xx scoreboards
